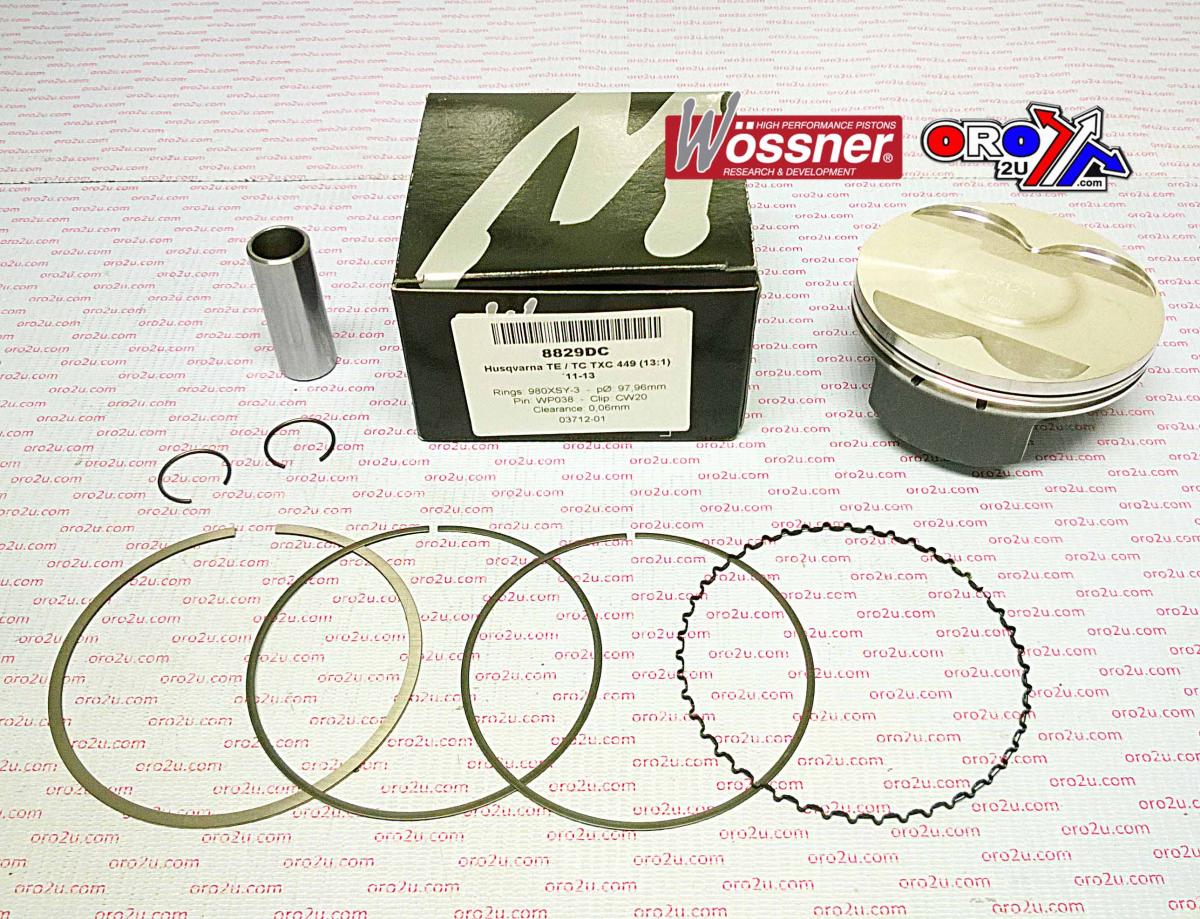

PISTON KIT11-13 TE TC449 98.00, HUSQVARNA WOSSNER 8829DA 1-002-442-681

Piston kit 98mm BORE 97.94 Wossner 8829DA (STD)

HUSQVARNA
TE449/TC446/TXC449 2011-2013 (PRO SERIES)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W920.A.WO
(ORO2U.COM)WOSSNER PISTON KIT HUSQVARNA TE449/TC446/TXC449 2011-2013
SIZE 97.94mm
WOSSNER # 8829DA
CIRCLIP - CW20
PIN - WP038
RINGS - 980XSY

Display (cm3) 449
Hub stroke (mm) 59.60
Clearance (mm) 0.06
Wossner compression Ratio: 13.00:1
OEM Compression ratio: 12.00:1
Dome volume (cm3) -0.50
Compression height (mm) 25.00
Theorectical weight (G)

Cross reference numbers ONLY.
1-002-442-681,
