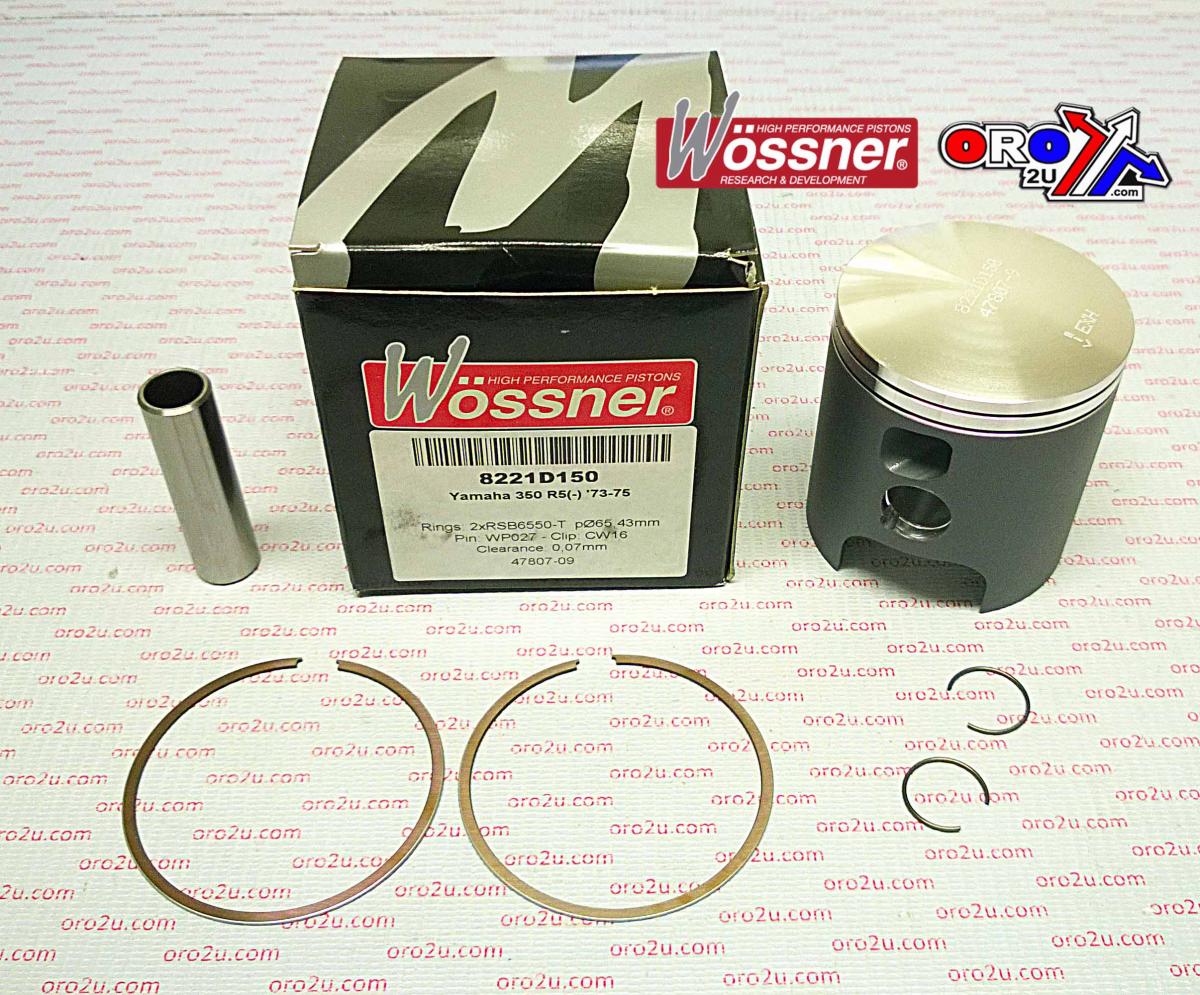

PISTON KIT YAM 350 R5 65.00, WOSSNER 8221D100

YAMAHA
350 R5 1973 - 1975,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9898.100.WO (phoenixmotos.com)
YAMAHA 350 R5 1973-1975,
WOSSNER PISTON KIT 8221D100 O/S +1.00 BORE 65.00mm
Cross reference numbers ONLY.
Clips. CW16,
Pin. WP027,
Rings. RSB6500 x 2

Display (cm3) 347
Hub stroke (mm) 54.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 36.00
Theorectical weight (G)
