Wiseco

Wiseco Forged Piston Kit 66.00 mm 10.25:1 CR for Honda XR200 R 1980–1983 4156M06600

Wiseco Forged Piston Kit 66.00 mm 10.25:1 CR for Honda XR200 R 1980–1983 4156M06600

£161.07 GBP
£161.07 GBP
Sale Sold out
Taxes included.

Wiseco 4156M06600 is a piston kit for a 66.00 mm bore.

Wiseco catalogue applications

Make Model Years
Honda XR200 R 1980–1983
Honda ATC185 1980–1983
Honda ATC200 E, X, M, Big Red 1981–1985
Honda ATC200 S 1981–1986
Honda TRX200 1981–1985

Specifications

  • Manufacturer part number: 4156M06600
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 66.00 MM
  • Piston Diameter: 65.95 MM
  • Piston Oversize: 0.50 MM
  • Piston Material: 2618
  • Skirt Coating: No
  • Compression Ratio Actual: 10.25:1

Included components

Ring Set #2598XC, Piston pin #S522, Circlip #CW15.

Cylinder preparation

Wiseco specifies: Bore & Hone; Bore and Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

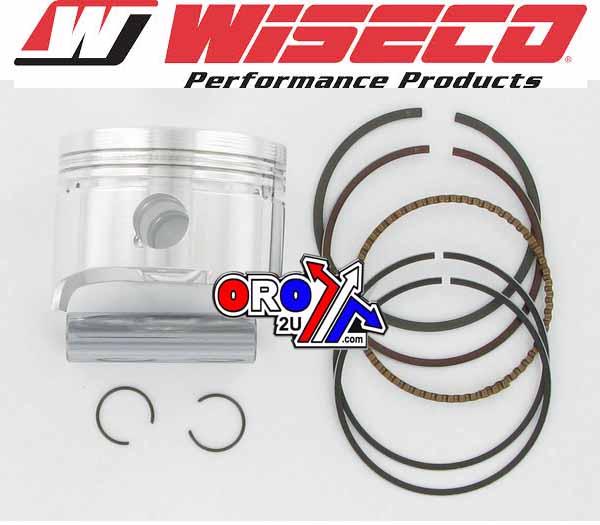

Manufacturer photograph for this reference. Packaging presentation may change.
