PISTON KIT VERTEX 99.0 B HONDA CRF 450 09-12, VERTEX 23534B OS +3.00 BIG BORE XL COMPR 12,0:1

PISTON KIT VERTEX 99.0 B HONDA CRF 450 09-12, VERTEX 23534B OS +3.00 BIG BORE XL COMPR 12,0:1

£243.79 GBP
£243.79 GBP
Sale Sold out
Taxes included.

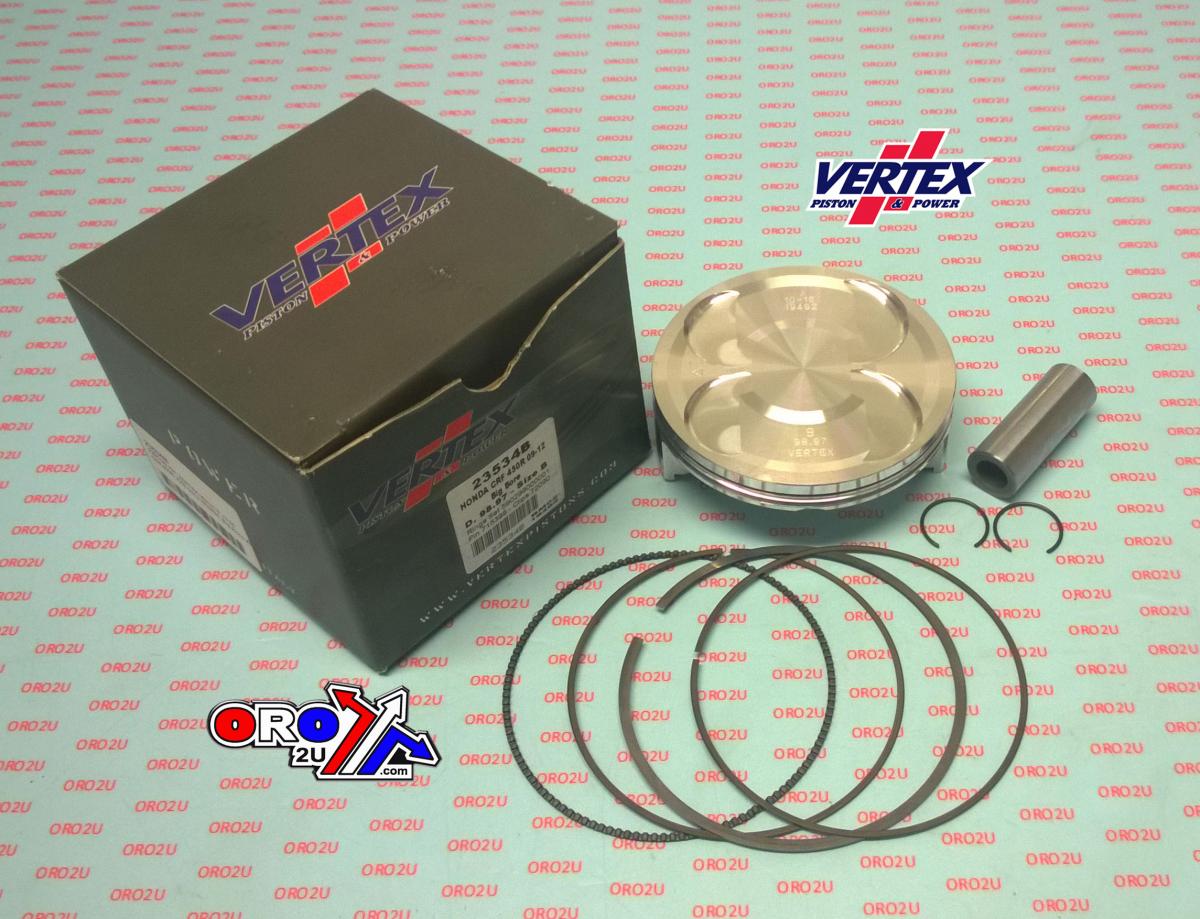

VERTEX UK PISTON KIT 23534B Compr 12,0:1 (Distributed by phoenixmotos.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

  • BORE SIZE. 99.00mm BIG BORE +3.00mm [B 95.97mm]

Replacement Parts.

  • Rings. 590299000001 SET
  • Pin. 711144
  • Clips. 72090

Cross reference numbers ONLY.

  • RING SET, PISTON 13011-MEN-A30
  • PISTON 13101-MEN-A30
  • PIN, PISTON 13111-MEN-A30
  • CLIP, PISTON PIN (19MM) 13112-MEN-A30

MODEL FITMENT

  • HONDA CRF 450R 2009-2012 BIG BORE XL COMPR 12,0:1
