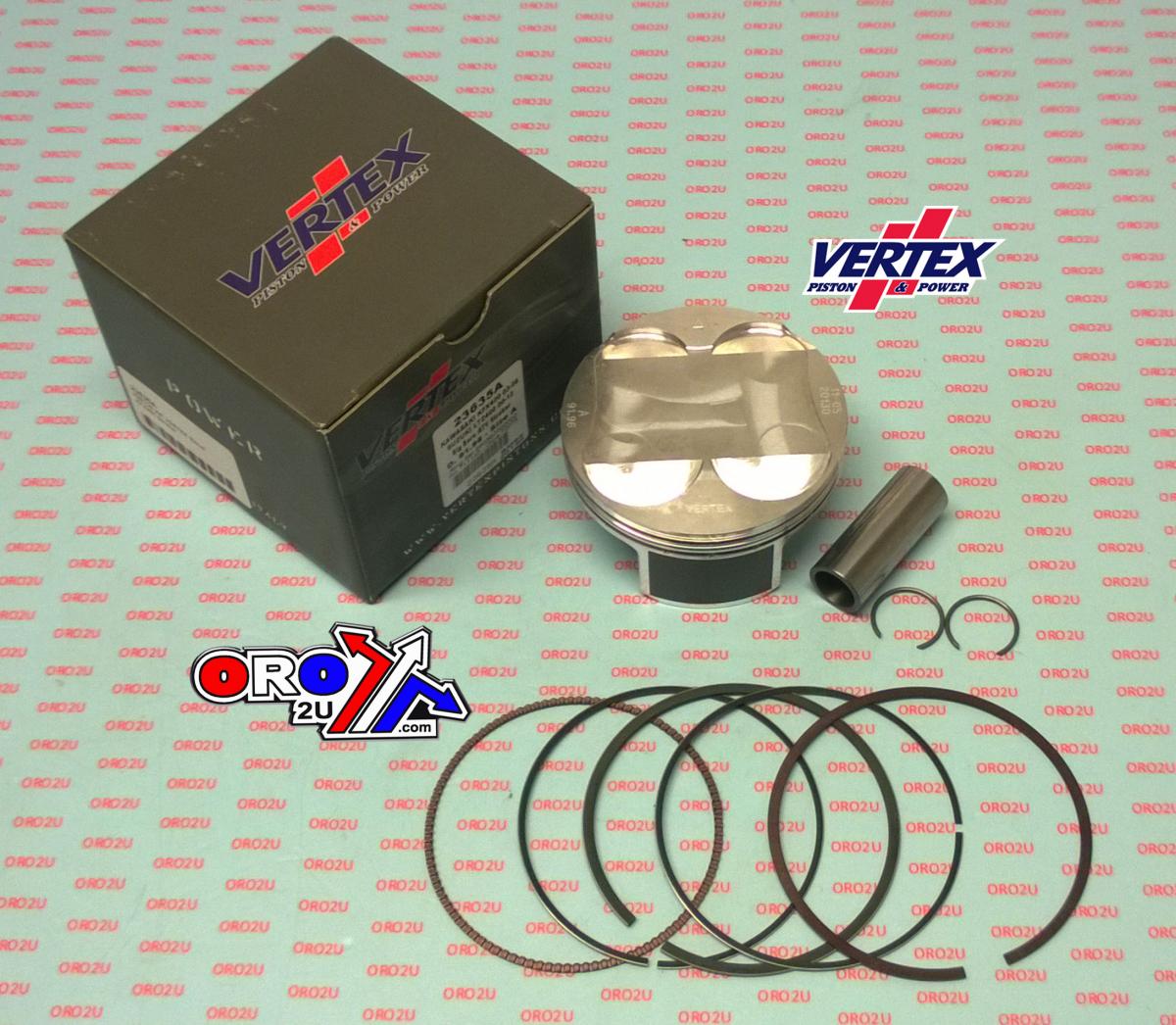

PISTON KIT VERTEX 92.0 SUZUKI LTZ 400 STROKER 03-12, VERTEX 23635A OS+2.00 BIG BORE KAWASAKI KFX 400

VERTEX UK PISTON KIT 23635A STROCKER (Distributed by oro2u.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE. 92.00mm BIG BORE +2.00mm [A 91.96mm]

Replacement Parts.

• Rings. 590392000002
• Pin. 711140
• Clips. 72075

Cross reference numbers ONLY.

• PISTON-ENGINE 13001-S006
• PIN-PISTON 13002-S006
• RING-SET-PISTON 13008-S008
• RING-SNAP,PISTON PIN 92033-S040

MODEL FITMENT

• KAWASAKI KFX 400 2003-2006 STROKER BIG BORE
• SUZUKI LTZ 400 QUADSPORT 2003-2012 STROKER BIG BORE
