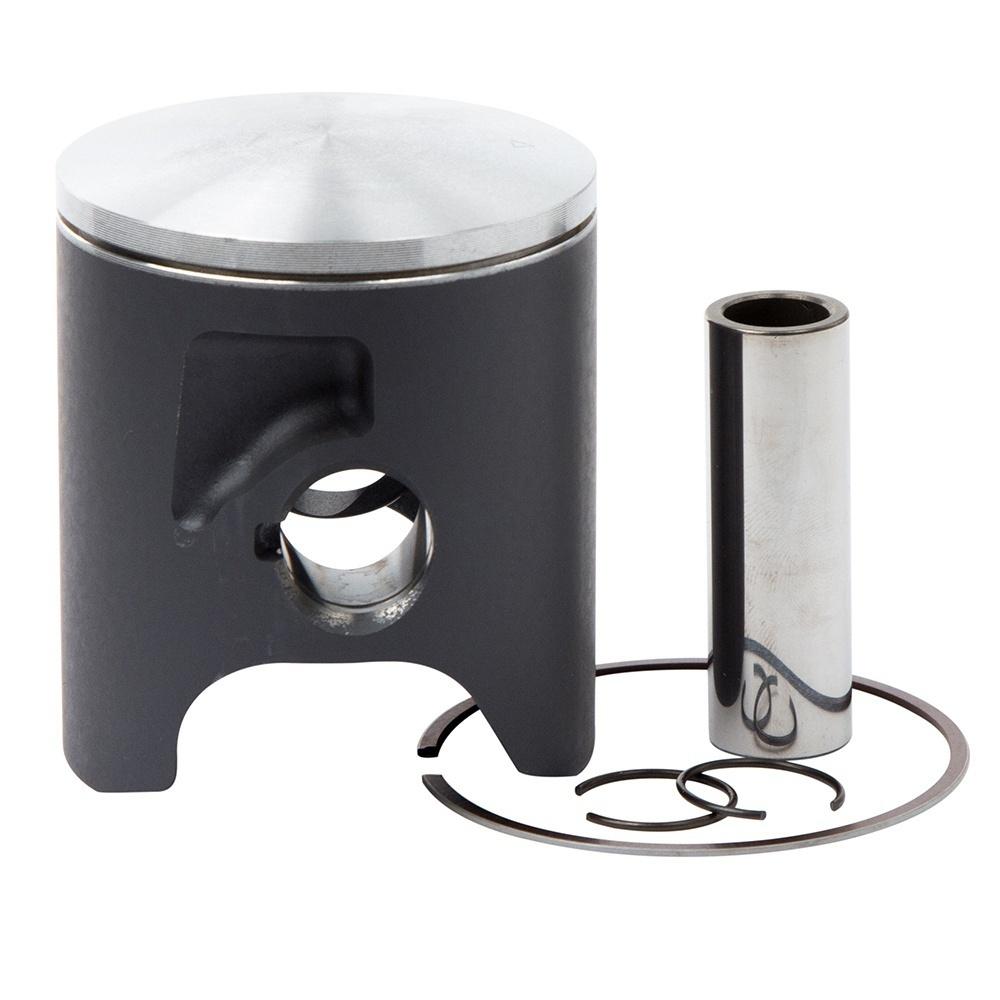

PISTON KIT VERTEX 67.5 HONDA CR/CRE 250 05-07, VERTEX 23133110 OS +1.10

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE. 67.50 OVER SIZE +1.10mm [OS 67.45mm]

Replacement Parts.

• Rings. 53010006750
• Pin. 715372
• Clips. 72074

Cross reference numbers ONLY.

• PISTON A 13110-KSK-730
• PISTON B 13120-KSK-730
• RING, PISTON 13121-KSK-732
• PIN, PISTON 13111-KSK-730
• CLIP, PISTON PIN (1.2X18) 90601-430-000

MODEL FITMENT

• HONDA CR 250 2005-2007
• HONDA CRE 250 2005-2007
