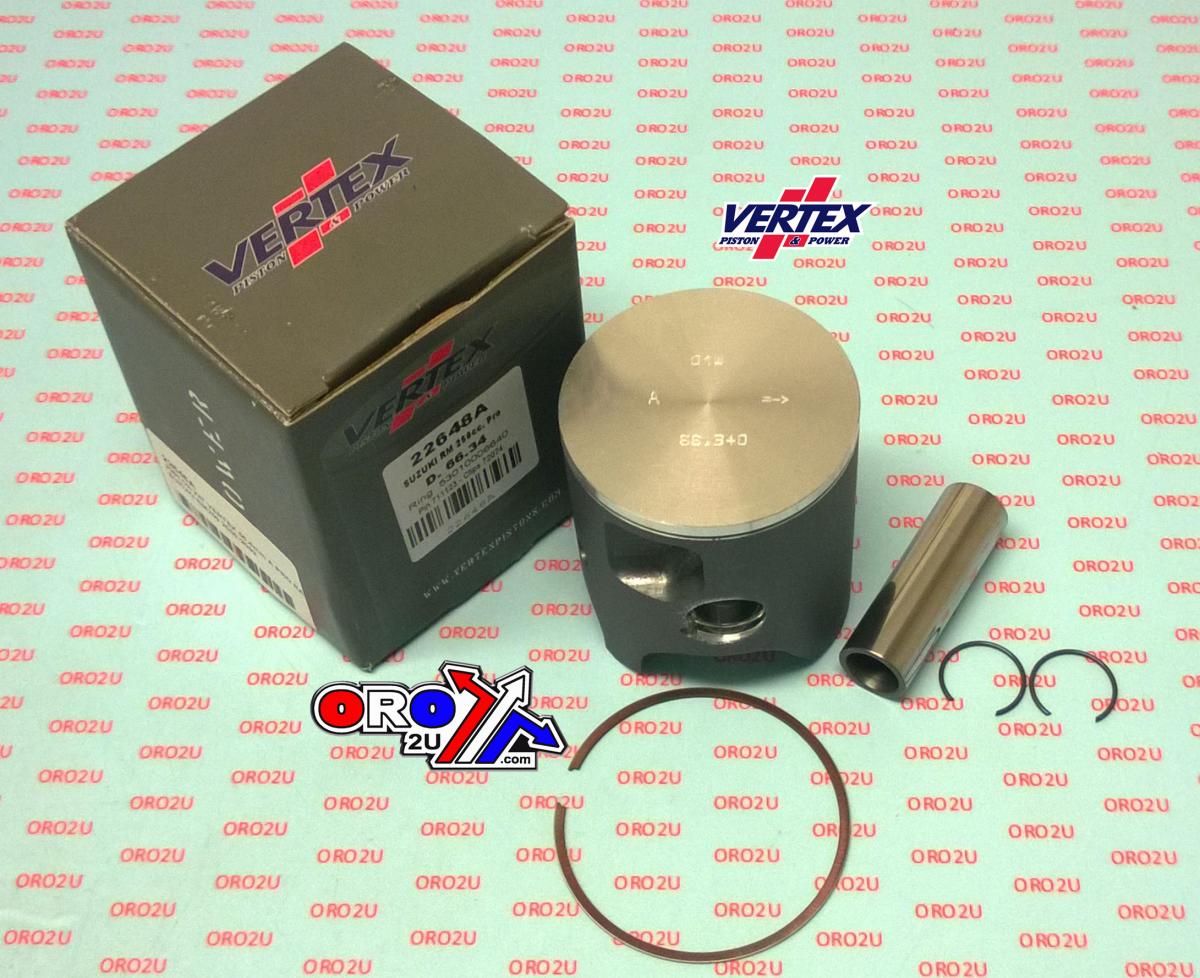

PISTON KIT VERTEX 66.4 D SUZUKI RM 250 00-02 PRO RACE, VERTEX 22648D SINGLE RING

VERTEX UK PISTON KIT 22648D (Distributed by oro2u.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE. 66.40mm [D 66.37mm]

Replacement Parts.

• Rings. 53010006640
• Pin. 715372
• Clips. 72074

Cross reference numbers ONLY.

• PISTON MODEL K1 12110-37E40-0F0 12110-37E42-0F0
• PISTON MODEL K2 12110-37E42-0F0
• RING, PISTON 12141-37E02
• PIN, PISTON MODEL K1 12151-28C00 12151-37F00
• CIRCLIP 09381-18002

MODEL FITMENT:

• SUZUKI RM 250 2000-2002 PRO RACE SINGLE RING
