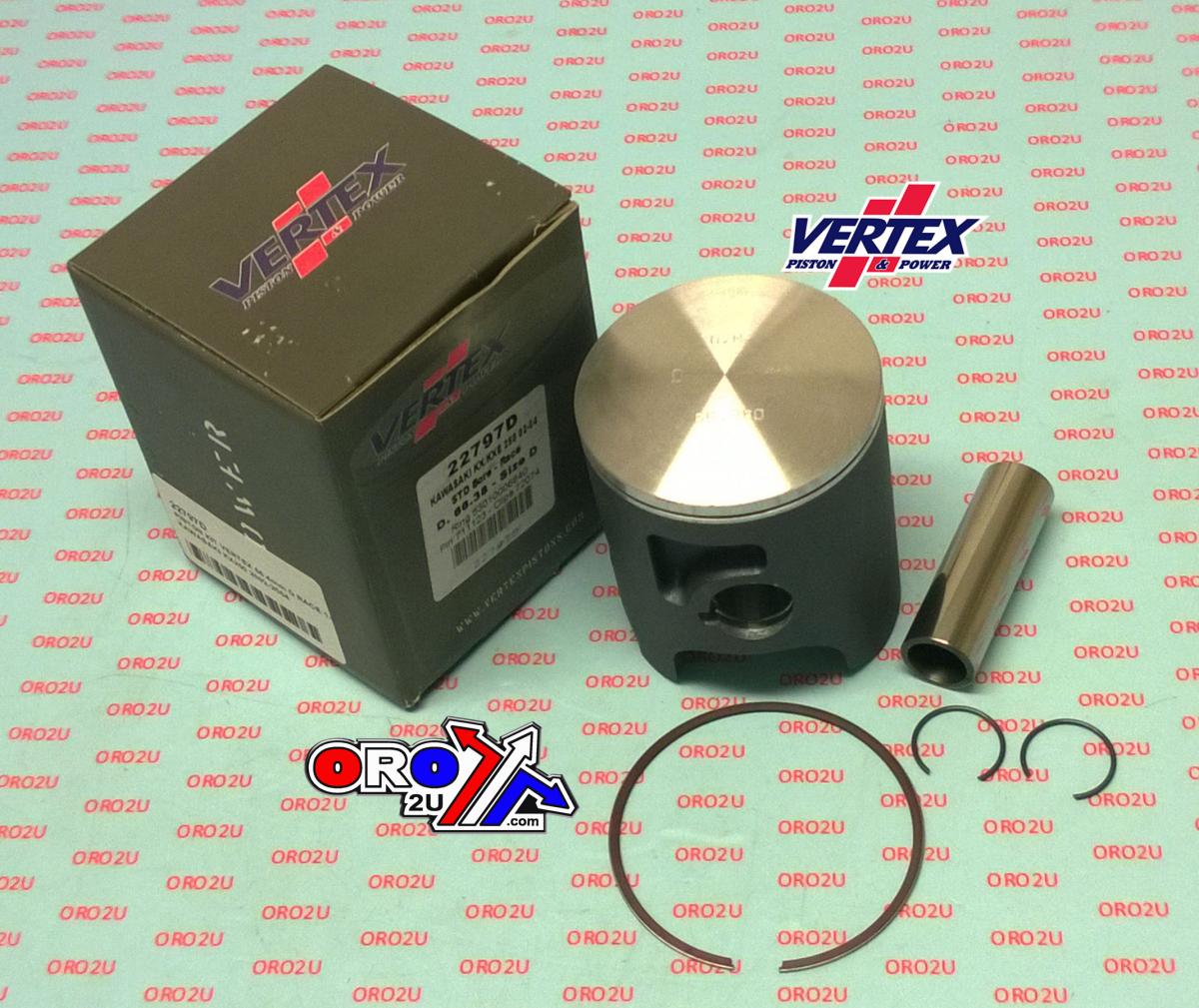

PISTON KIT VERTEX 66.4 C KAWASAKI KX/KXE 250 02-04 RACE, VERTEX 22797C SINGLE RING

VERTEX UK PISTON KIT 22797C (Distributed by oro2u.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE. 66.40mm [C 66.37mm]

Replacement Parts.

• Rings. 53010006640
• Pin. 715372
• Clips. 72074

Cross reference numbers ONLY.

• PISTON-ENGINE,SIZE B 13001-0013
• PIN-PISTON 13002-1098
• RING-SET-PISTON 13008-1173
• RING-SNAP,PISTON PIN 92033-1336

MODEL FITMENT:

• KAWASAKI KX 250 2002-2004 RACE SINGLE RING
• KAWASAKI KXE 250 2002-2004 RACE SINGLE RING
