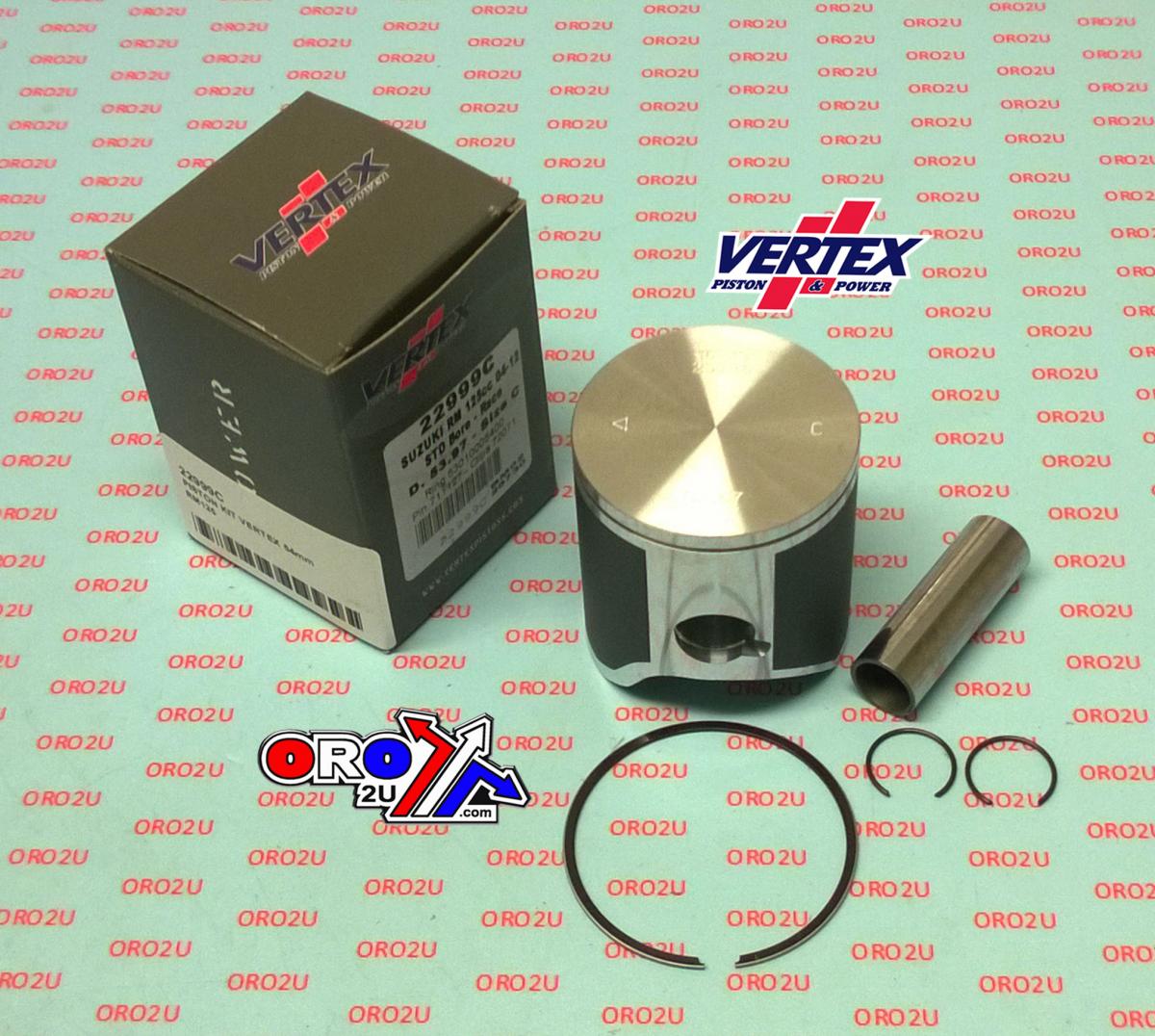

PISTON KIT VERTEX 54.0 D SUZUKI RM 125 04-12 RACE, VERTEX 22999D

VERTEX UK PISTON KIT 22999D (Distributed by oro2u.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE. 54.00mm [D 53.98mm]

Replacement Parts.

• Rings. 53010005400
• Pin. 711127
• Clips. 72071

Cross reference numbers ONLY.

• PISTON MODEL K1 12110-36E30-0F0 12110-36E31-0F0
• PISTON MODEL K2/K3 12110-36E31-0F0
• PISTON MODEL K4/K5 12110-36F00-0F0
• PISTON MODEL K6 12110-36F10-0F0 12110-36F00-0F0
• RING, PISTON MODEL K1/K2 12141-36E01
• RING, PISTON MODEL K3/K4/K5/K6 12141-36F00
• PIN, PISTON 12151-01B41
• CIRCLIP 09381-15001
• PISTON KIT OPT FOR E28 12100-36830 12100-36840
• PISTON KIT OPT FOR E28 12100-36831
• PISTON KIT OPT FOR E28 12101-36810
• MODEL K3 12101-36810
• PISTON KIT OPT FOR E28 12101-36821
• MODEL K4/K5/K6 12101-36821

MODEL FITMENT:

• SUZUKI RM 125 2004-2012 RACE
