Vertex

PISTON KIT VERTEX 53.0 KAWASAKI KX 100 98-22, VERTEX 23621050 OS +050 RACE SINGLE RING

PISTON KIT VERTEX 53.0 KAWASAKI KX 100 98-22, VERTEX 23621050 OS +050 RACE SINGLE RING

£150.05 GBP
£150.05 GBP
Sale Sold out
Taxes included.
VERTEX UK PISTON KIT 23621050 RACE 1-RING (Distributed by phoenixmotos.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.

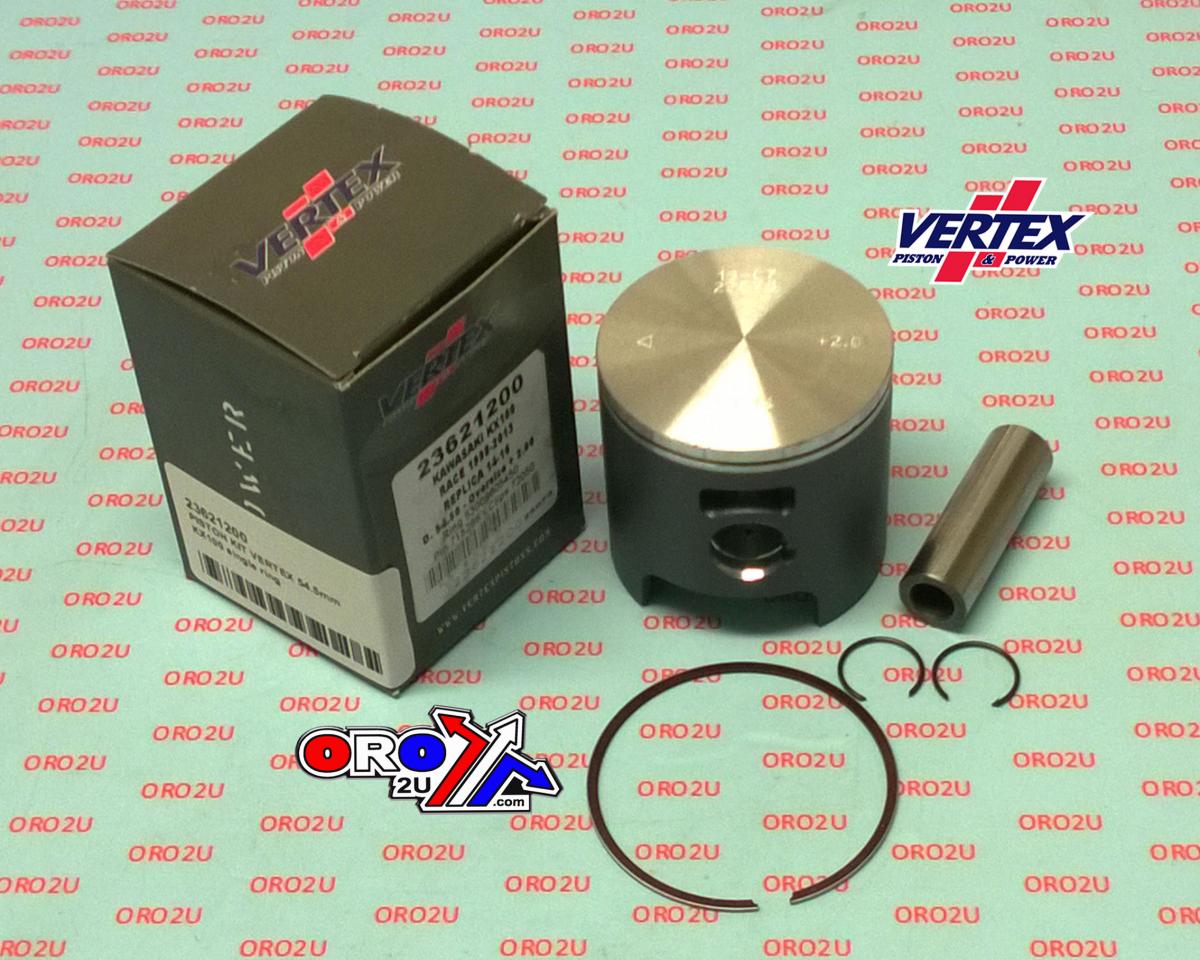

- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

  • BORE SIZE. 53.00mm OVER SIZE +0.50mm [A 52.94mm]

Replacement Parts.

  • Rings. 53010005300
  • Pin. 715286
  • Clips. 72050

Cross reference numbers ONLY.

  • PISTON-ENGINE 13001-0759
  • PIN-PISTON 13002-1018
  • RING-PISTON TOP 13003-1274
  • RING-SNAP 92033-0005

MODEL FITMENT

  • KAWASAKI KX 100 1998-2013 RACE SINGLE RING
  • KAWASAKI KX 100 2014-2022 SINGLE RING
