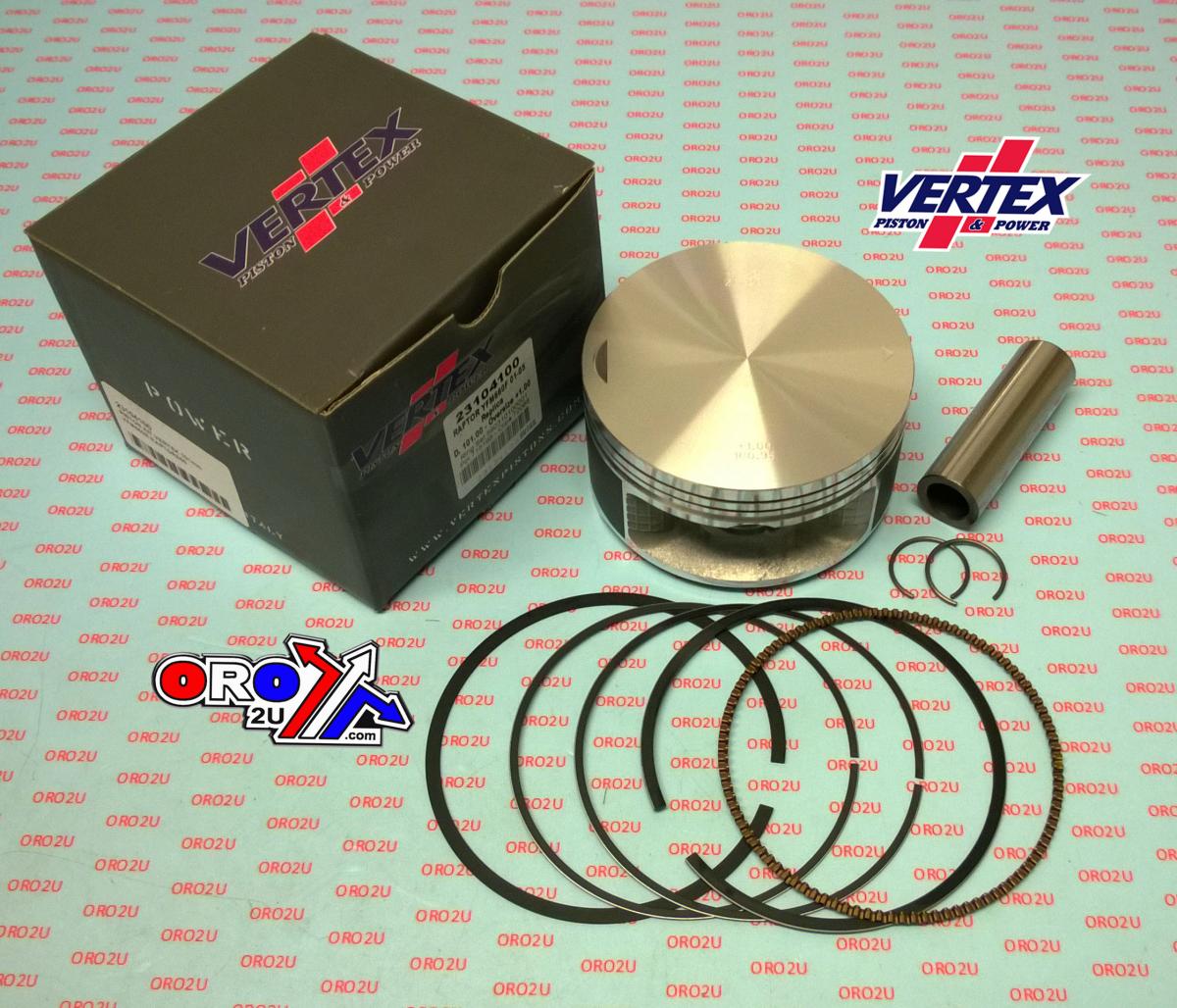

PISTON KIT VERTEX 100.5 YAMAHA YFM 660 01-08, VERTEX 23104050 OS +0.50 RAPTOR GRIZZLY COMPR 9,9:1

VERTEX UK PISTON KIT 23104050 Compr 9.9:1 (Distributed by oro2u.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE. 100.50mm +0.50 [A 100.45 mm]

Replacement Parts.

• Rings. 590310050001 SET
• Pin. 715198
• Clips. 72068

Cross reference numbers ONLY.

• Piston (1.00Mm Os) AP 3YF-11638-00-00
• Piston Ring Set (1.00Mm O/S) AP 3YF-11610-40-00 2C6-11607-00-00
• Piston Ring Set (Std) 3YF-11610-00-00 2C6-11603-00-00
• Piston Ring Set (0.50Mm O/S) AP 3YF-11610-20-00 2C6-11605-00-00
• Piston Ring Set (1.00Mm O/S) AP 3YF-11610-40-00 2C6-11607-00-00
• Piston Ring Set (Std) 3YF-11610-00-00 2C6-11603-00-00
• Pin, Piston 3YF-11633-01-00
• Circlip 93450-24028-00

MODEL FITMENT

• YAMAHA YFM 660R RAPTOR 660 2001-2005
• YAMAHA YFM 660F GRIZZLY 660 2002-2008
• YAMAHA YFM 660F GRIZZLY 2005-2007 COMPR 9,9:1
