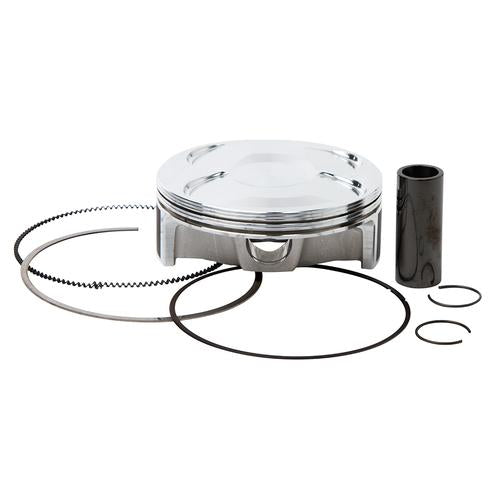

PISTON KIT VERTEX 100.0 C HC KTM SX/XC 505 08-11, VERTEX 23417C HC ATV COMPR 12,5:1

VERTEX UK PISTON KIT 23417C HC Compr 12.5:1 (Distributed by oro2u.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE. 100.00 [C 99.96mm]

Replacement Parts.

• Rings. 590210000001 SET
• Pin. 711174
• Clips. 72073

Cross reference numbers ONLY.

• Piston Pin 77630033000
• Circlip 77630074000
• Piston D=100 07 77630007000 I 77630007200 I
• Piston D=100 07 77630007000 II 77630007300 II
• Oil Scraper Ring 77630032000 77630032100
• Rectangular Ring D=100 07 77630030000

MODEL FITMENT

• KTM SX 505F 2008-2009 HC COMPR 13,5:1
• KTM SX 505F ATV 2009-2011 HC COMPR 12,5:1
• KTM XC 505F ATV 2008-2011 HC COMPR 12,5:1
