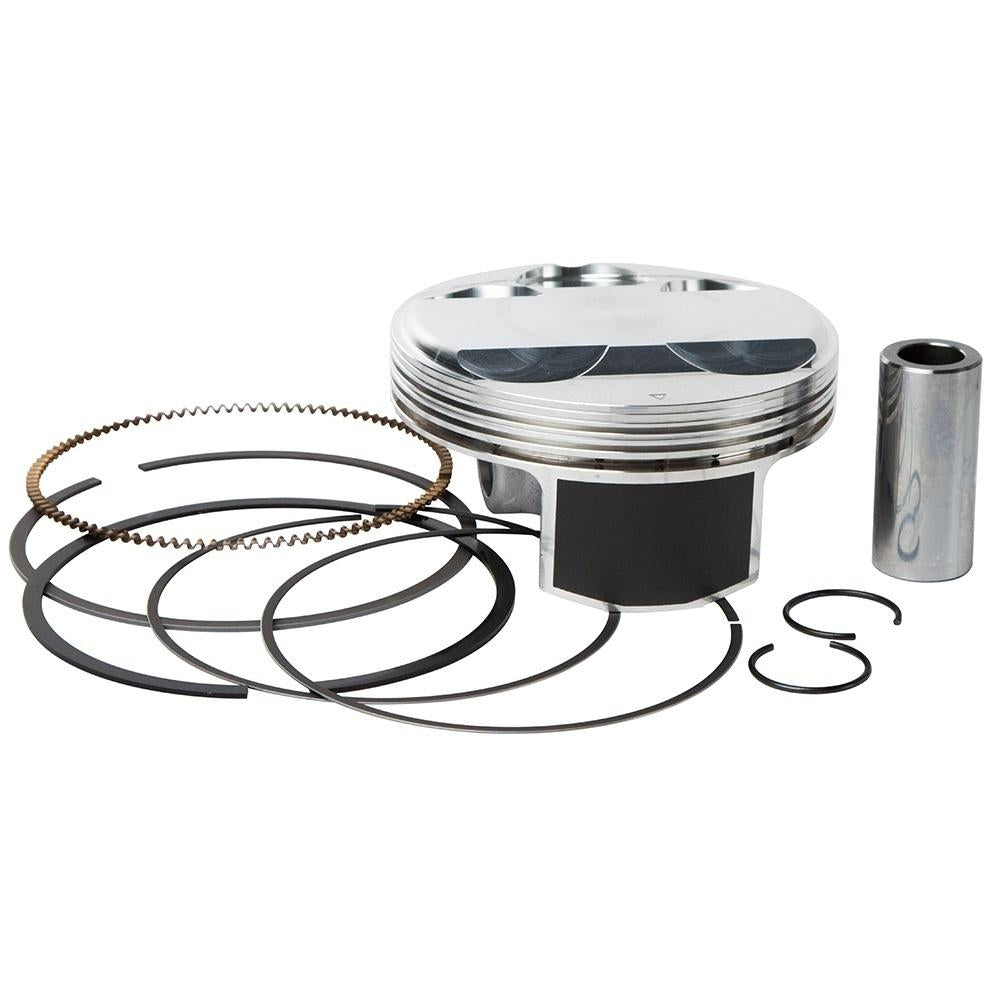

PISTON KIT VERTEX 100.0 A HC YAMAHA 660 RAPTOR 02-05, VERTEX 23555A RHINO HC COMPR 11,0:1

VERTEX UK PISTON KIT 23555A HC Compr 11,0:1 (Distributed by oro2u.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE. 100.00mm [A 99.95mm]

Replacement Parts.

• Rings. 590310000001
• Pin. 715270
• Clips. 72068

Cross reference numbers ONLY.

• Piston (1.00Mm Os) AP 2C6-11638-00-00
• Piston (0.50Mm Os) AP 2C6-11636-00-00
• Piston (Std) 2C6-11631-00-X0
• Piston Ring Set (1.00Mm Os) AP 2C6-11607-10-00
• Piston Ring Set (0.50Mm Os) AP 2C6-11605-10-00
• Piston Ring Set (Std) 2C6-11603-10-00
• Pin, Piston 3YF-11633-01-00
• Circlip 93450-24028-00

MODEL FITMENT

• YAMAHA 660 RAPTOR 2002-2005 HC COMPR 11,0:1
• YAMAHA 660 RHINO 2002-2005 HC COMPR 11,0:1
