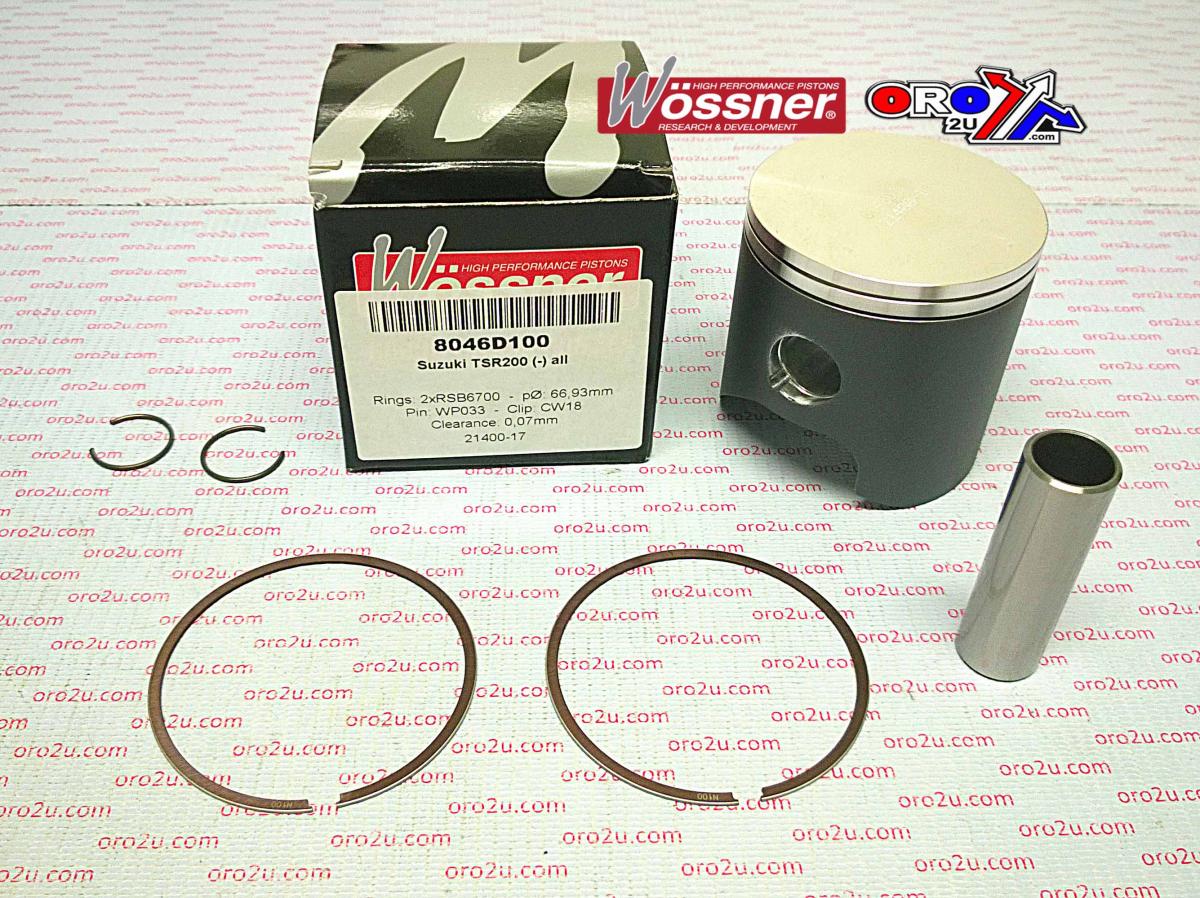

PISTON KIT TS200R ALL 67mm, WOSSNER 8046D100 SUZUKI

SUZUKI
TS200R

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W957+100.WO (phoenixmotos.com)SUZUKI TS200R ALL YEARS,PISTON KIT 8046D100
RINGS RSB6700 x 2
C-CLIPS CW18
PIN WP033

Display (cm3) 200
Hub stroke (mm) 56.80
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 28.50
Theorectical weight (G)
