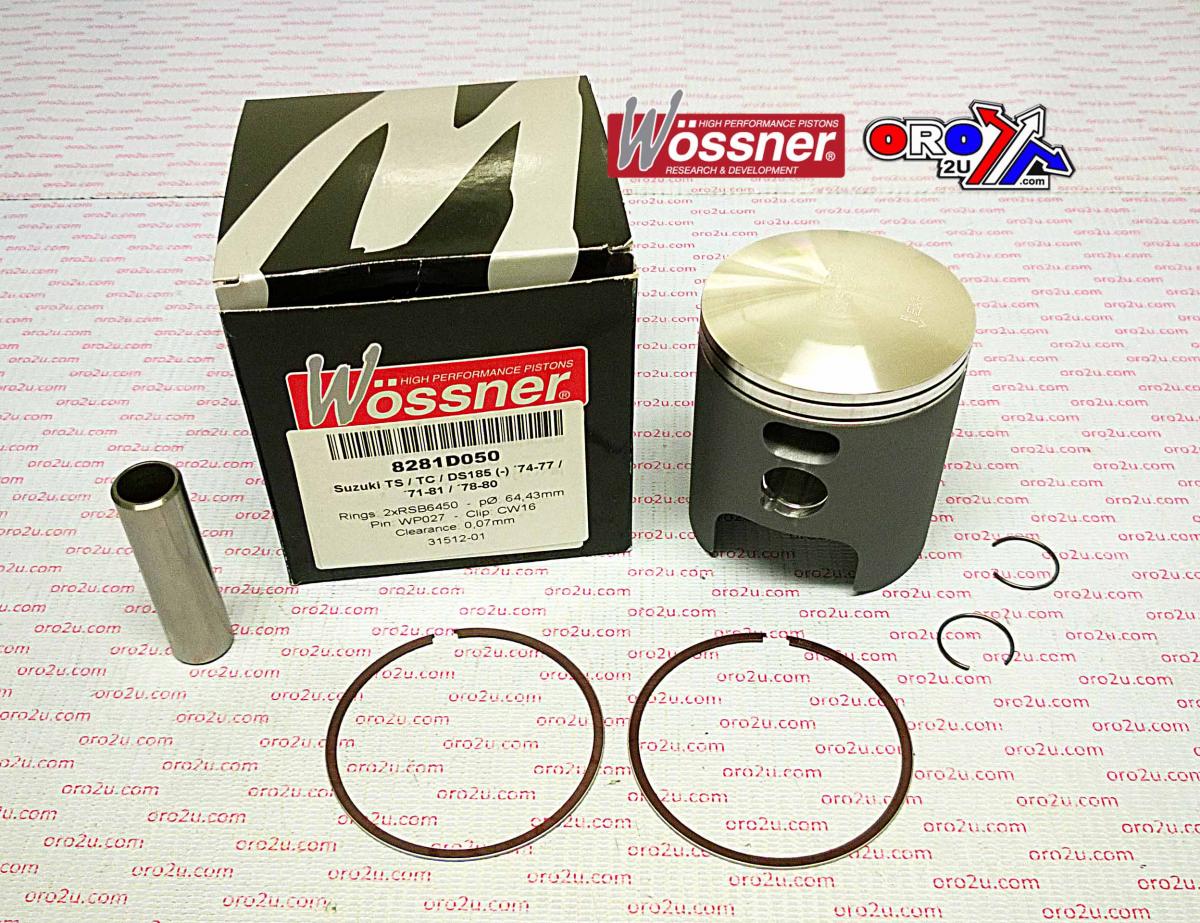

PISTON KIT TS185 TC DS 64.50, WOSSNER 8281D050 SUZUKI

Piston kit 64.50mm BORE 64.43mm Wossner 8281D050 (+0.01mm)

SUZUKI
TS185 74-77,
TC185 71-81,
DS185 78-80,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W922_050.WO (oro2u.com) Wossner Piston SUZUKI TS185 74-77, TC185 71-81, DS185 78-80 (8281D050)
Circlip P/N CW16
Pin P/N WP027
Ring Set P/N RSB6450 x 2
Size. 64.50mm

Display (cm3) 185
Hub stroke (mm) 57.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 32.00
Theorectical weight (G)
