Wiseco Forged Piston Kit 87.00 mm for Honda TRX420 Rancher 2007–2024 40050M08700

Wiseco 40050M08700 is a piston kit for a 87.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 40050M08700
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 87.00 MM
• Piston Diameter: 86.95 MM
• Piston Oversize: 0.50 MM
• Piston Material: 2618
• Skirt Coating: Yes

Included components

Ring Set #8700XX, Piston pin #S475, Circlip #CW19.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

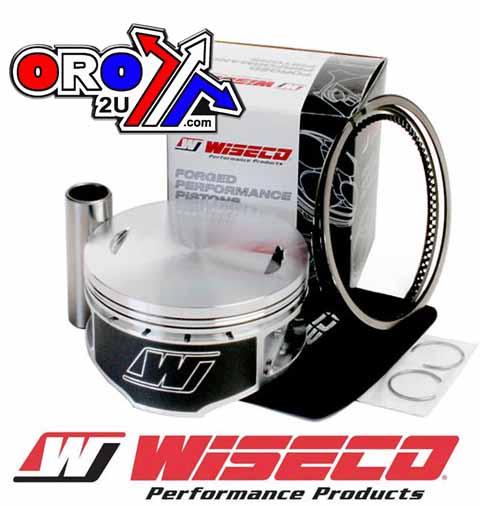

Manufacturer photograph for this reference. Packaging presentation may change.
