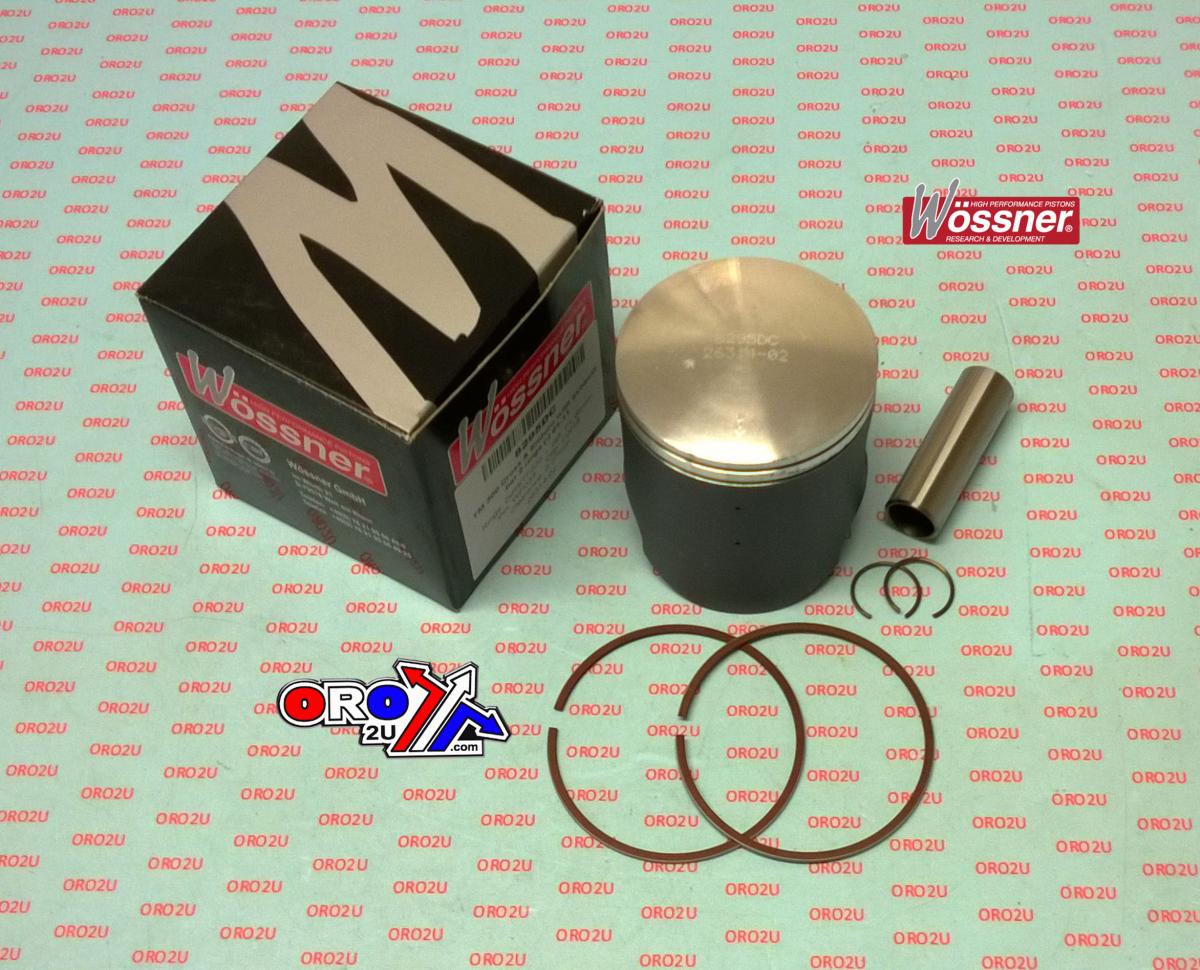

PISTON KIT TM 300 01-06 72.00, FORGED WOSSNER 8295DB

TM
300 Mx 2001 -2006,
300 Enduro 2001 -2006,
(2 RING)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9920.00B.WO (phoenixmotos.com)
TM 300 2001-2006,
WOSSNER 8295DB 72.00mm B BORE PISTON KIT
Clips P/N CW18
Pin P/N WP033
Ring Set P/N RST7200 x 2

Hub stroke (mm) 73.70
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 38.00
Theorectical weight (G)
