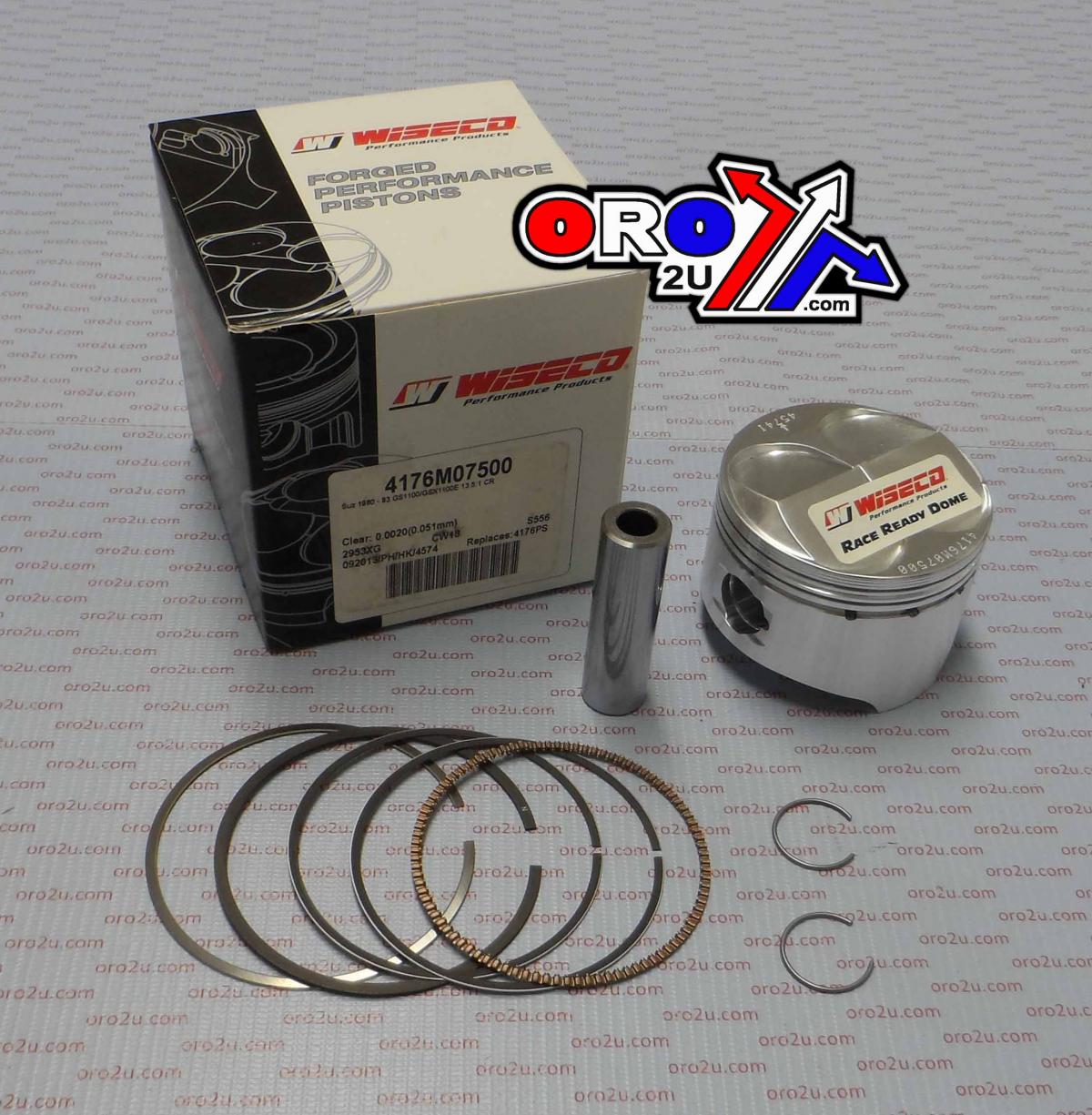

Wiseco Forged Piston Kit 75.00 mm 13.5:1 CR for Suzuki GS1100 1980–1983 4176M07500

Wiseco 4176M07500 is a piston kit for a 75.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4176M07500
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 75.00 MM
• Piston Diameter: 74.95 MM
• Piston Oversize: 3.00 MM
• Piston Material: 2618
• Skirt Coating: No
• Compression Ratio Actual: 13.5:1

Included components

Ring Set #2953XG, Piston pin #S556, Circlip #CW18.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
