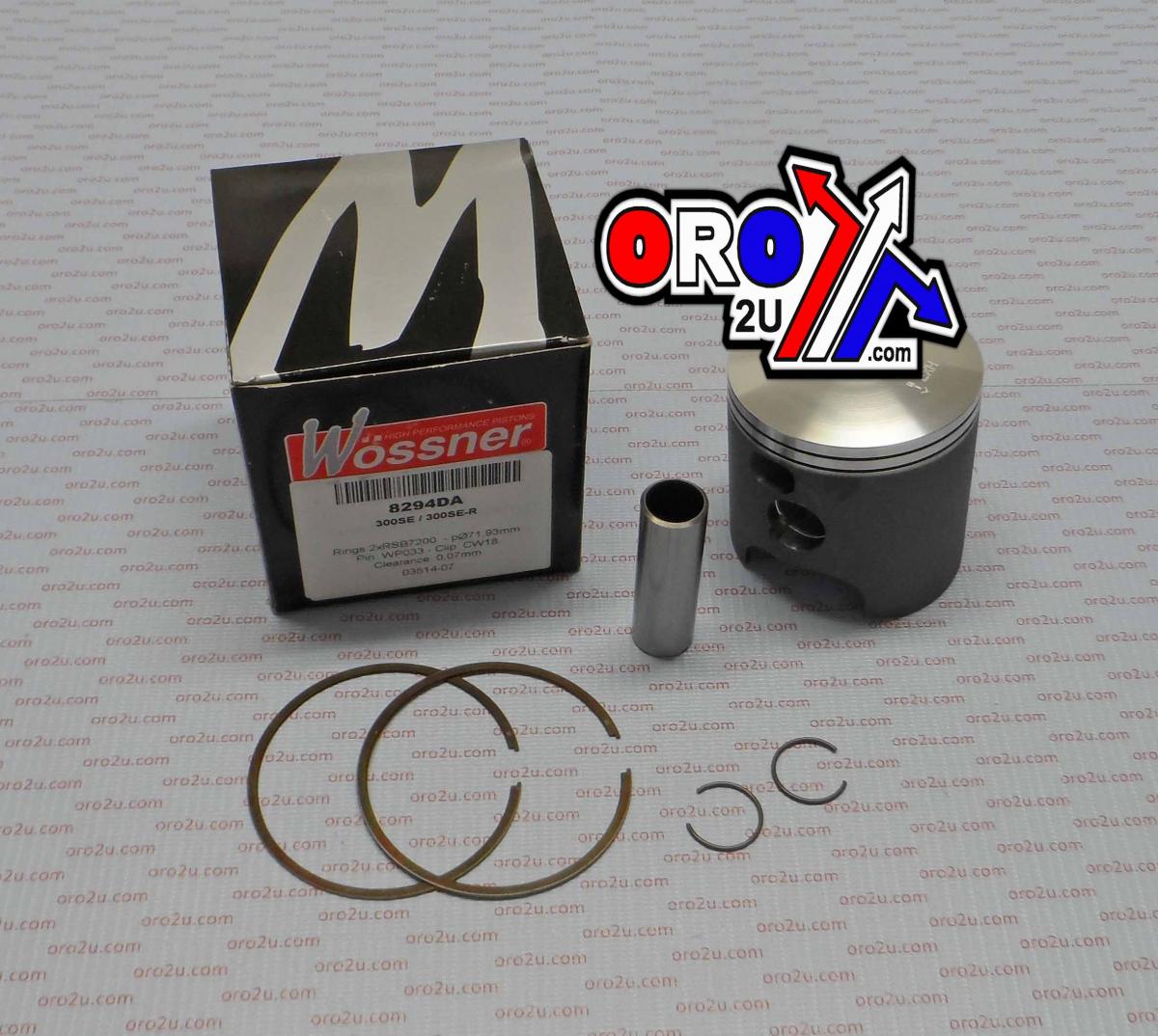

PISTON KIT SHERCO 300 72.00, WOSSNER 8294DA 2-STROKE

SHERCO
300SE 2013 - ,
300SE-R 2013 - ,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9878.A.WO (phoenixmotos.com)
SHERCO 2 stk. 300SE / 300SR-R 2013-2016,
WOSSNER FORGED PISTON 8294DA
Clip part no - CW18
Piston pin- WP033
Ring set -RSB7200

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 38.00
Theorectical weight (G)
