PISTON KIT SET GSXR1000 73.40, WOSSNER K8700DA-4 SUZUKI, 2005-2008

SUZUKI
GSXR1000 2005-2008,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9893.000.WO (phoenixmotos.com)
SUZUKI GSXR1000 2005-2008,

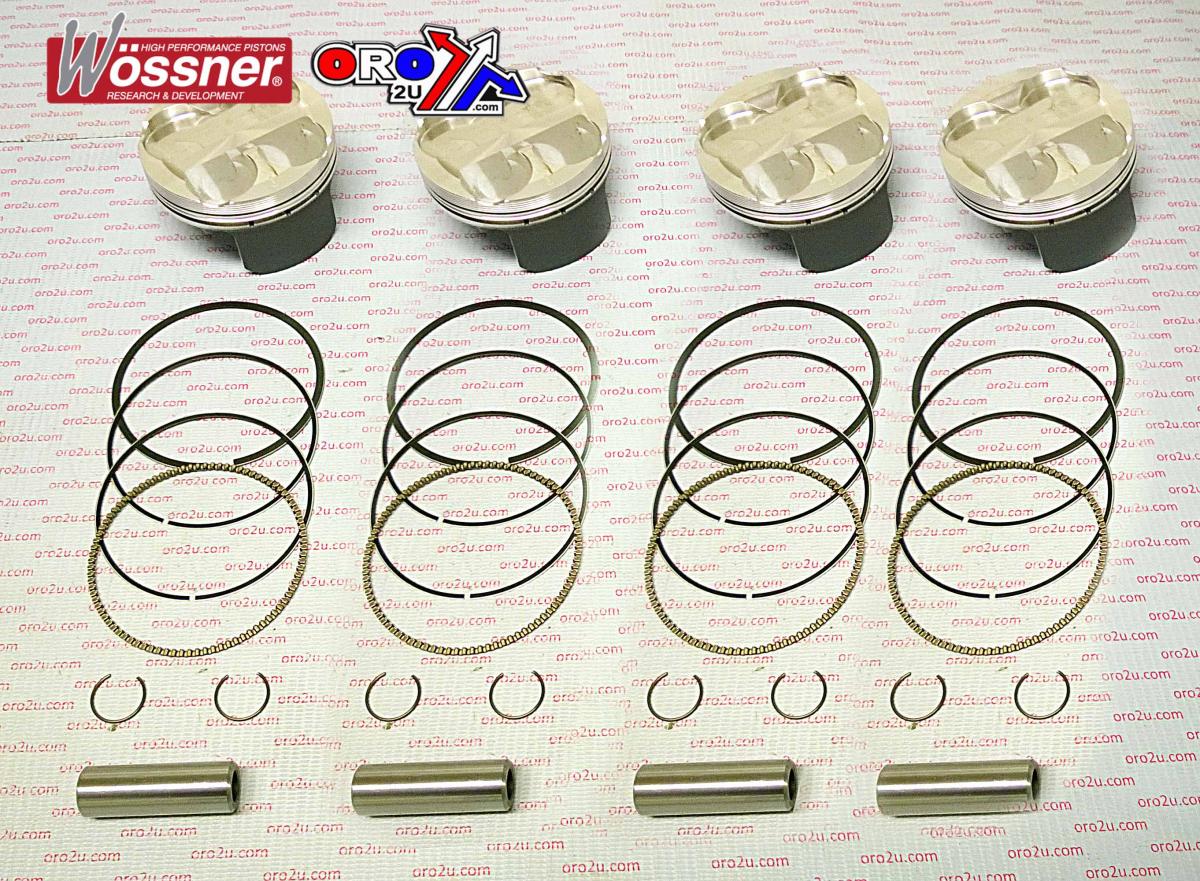

PISTON KIT SET/4 WOSSNER K8700DA-4 O/S STD BORE 73.40MM.

CLIP No. CW15,
PIN No. WP011,
RINGS No. RIK73.40L

Display (cm3) 988 / 1024 / 1070
Hub stroke (mm) 59.00
Clearance (mm) 0.04
Wossner compression Ratio: Display (cm3) 998 - 14.00:1 / 1024 - 14.60:1 / 1070 - 14.90:1
OEM Compression ratio: 12.50:1
Dome volume (cm3) -4.40
Compression height (mm) 22.55
Theorectical weight (G)

DISPLACEMENT 998cc
