PISTON KIT SET/4 HAYABUSA 84 NC 99-07, WOSSNER K4017D300-4 SUZUKI, NC / 3-RING 99-07 DISP.

Piston kit 84.00mm Bore 83.95 Wossner SET/4 K4017D300-4 (+3MM)

SUZUKI
HAYABUSA 1999 - 2007, (3 Rings)
(Pro series)

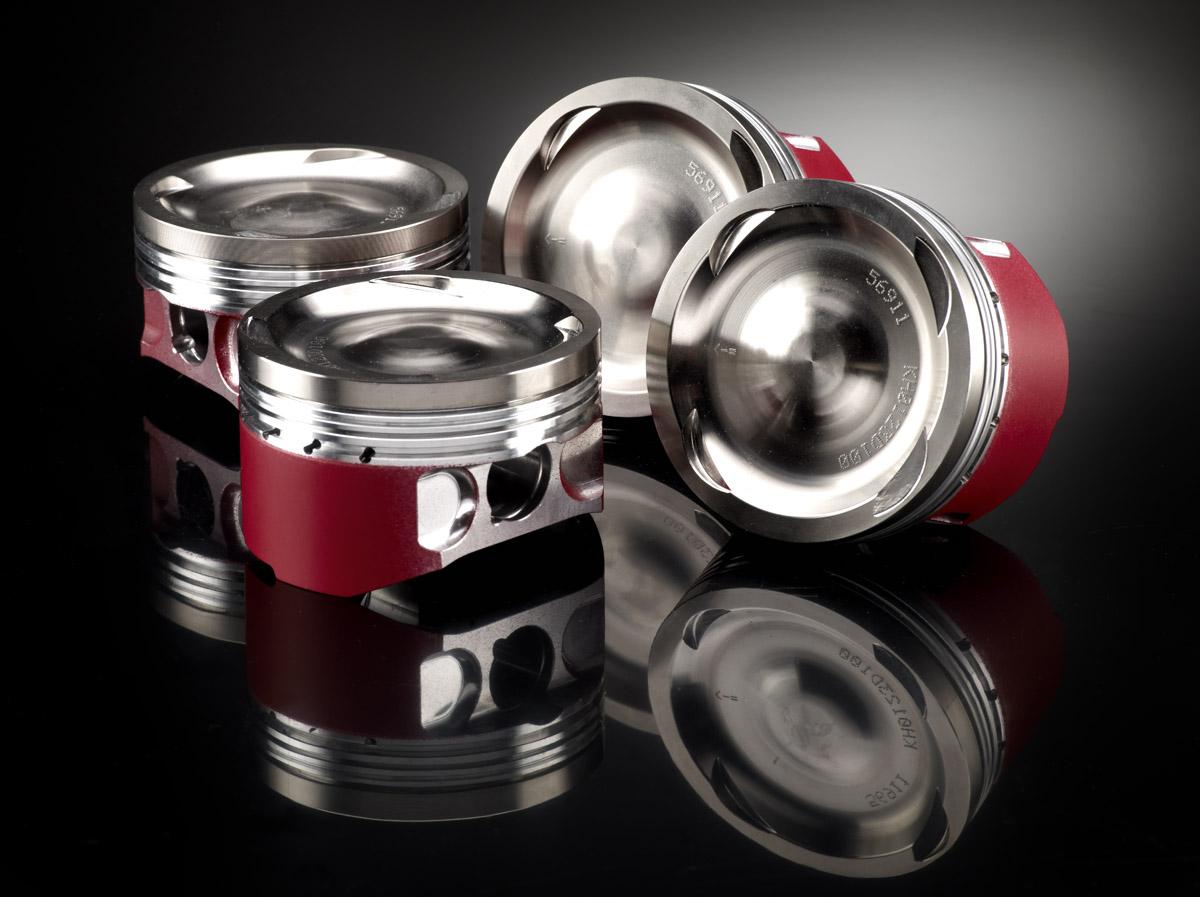

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No: 56-W9897.300.NC.WO (phoenixmotos.com)

SUZUKI HAYABUSA HC / 3-Ring 1999-2007,

PISTON KIT SET/4 WOSSNER K4017D300-4 STD BORE 84.00mm.

COMP.HEIGHT 25.25mm

Oversize: +3.00MM

Hub stroke (mm) 63.00

Clearance (mm) 0.05

Wossner compression Ratio: 12.00:1

Compression height (mm) 25.25

Theorectical weight (G) 253

Cross reference numbers ONLY.

CLIP No. CW20,

PISTON PIN No. WP029-SP

REPLACEMENT RING SET No. RIK84.00B
