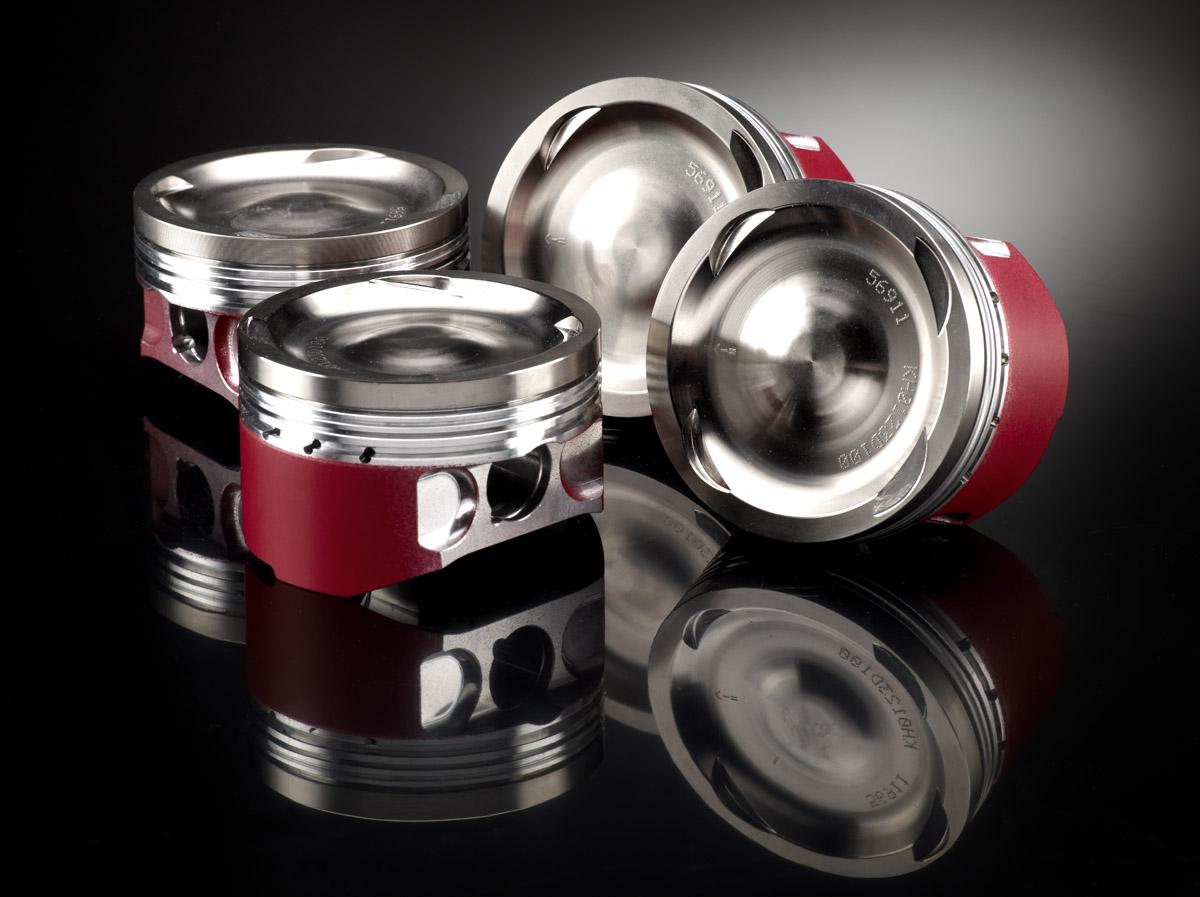

PISTON KIT SET/4 HAYABUSA 84 HC, WOSSNER K8730D300-4 SUZUKI, HC / 3-RING 99-07 DISP. 1395cc

SUZUKI
HAYABUSA 1999 - 2007, (3 Rings)
(Pro series)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9897.300.WO (phoenixmotos.com)
SUZUKI HAYABUSA HC / 3-Ring 1999-2007,
PISTON KIT SET/4 WOSSNER K8730D300-4 O/S +3.00 BORE 84.00mm.
CLIP No. CW20,
PISTON PIN No. WP029
REPLACEMENT RING SET No. RIK84.00B

Display (cm3) 1299 / 1395 / 1429
Hub stroke (mm) 63.00
Clearance (mm) 0.05
Wossner compression Ratio: 13.50:1
OEM Compression ratio: 11.00:1
Dome volume (cm3) -2.45
Compression height (mm) 25.10
Theorectical weight (G)
