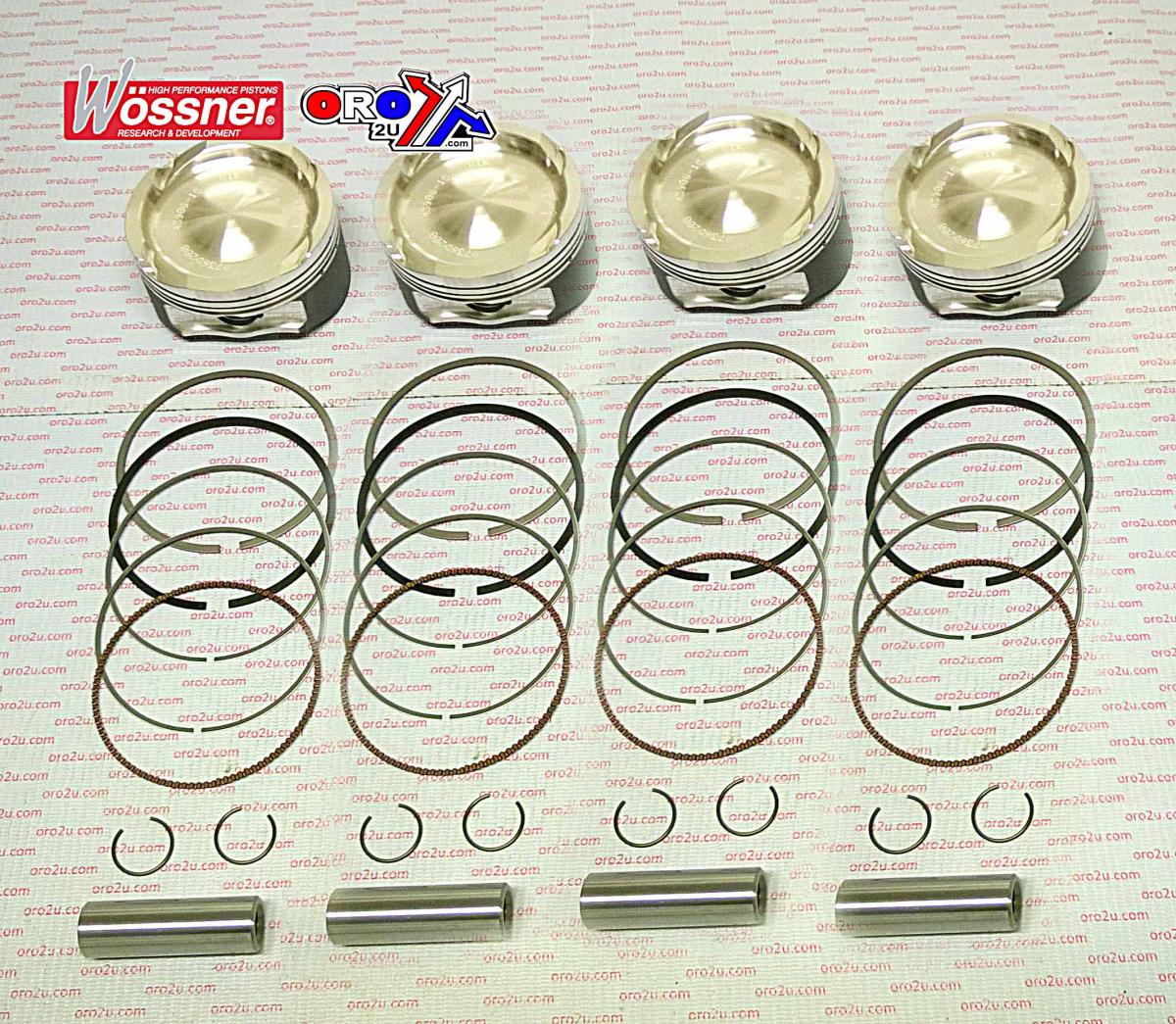

PISTON KIT SET/4 HAYABUSA 83, WOSSNER K8736D200-4 SUZUKI, TURBO 2008-ON DISPL. 1406cc

SUZUKI
HAYABUSA Turbo 2008-ON,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9896.200.WO (phoenixmotos.com)
SUZUKI HAYABUSA TURBO 2008-ON,
PISTON KIT SET/4 WOSSNER K8736D200-4 O/S 2.00 BORE 83.00mm.
DISPLACEMENT 1406cc

Cross reference numbers ONLY.
CLIP No. CW18,
PISTON PIN No. WP064
REPLACEMENT RING SET No. RIK83.00A

Display (cm3) 1340 / 1406
Hub stroke (mm) 65.00
Clearance (mm) 0.08
Wossner compression Ratio: 9.00:1
OEM Compression ratio: 12.50:1
Dome volume (cm3) -19.40
Compression height (mm) 24.00
Theorectical weight (G)
