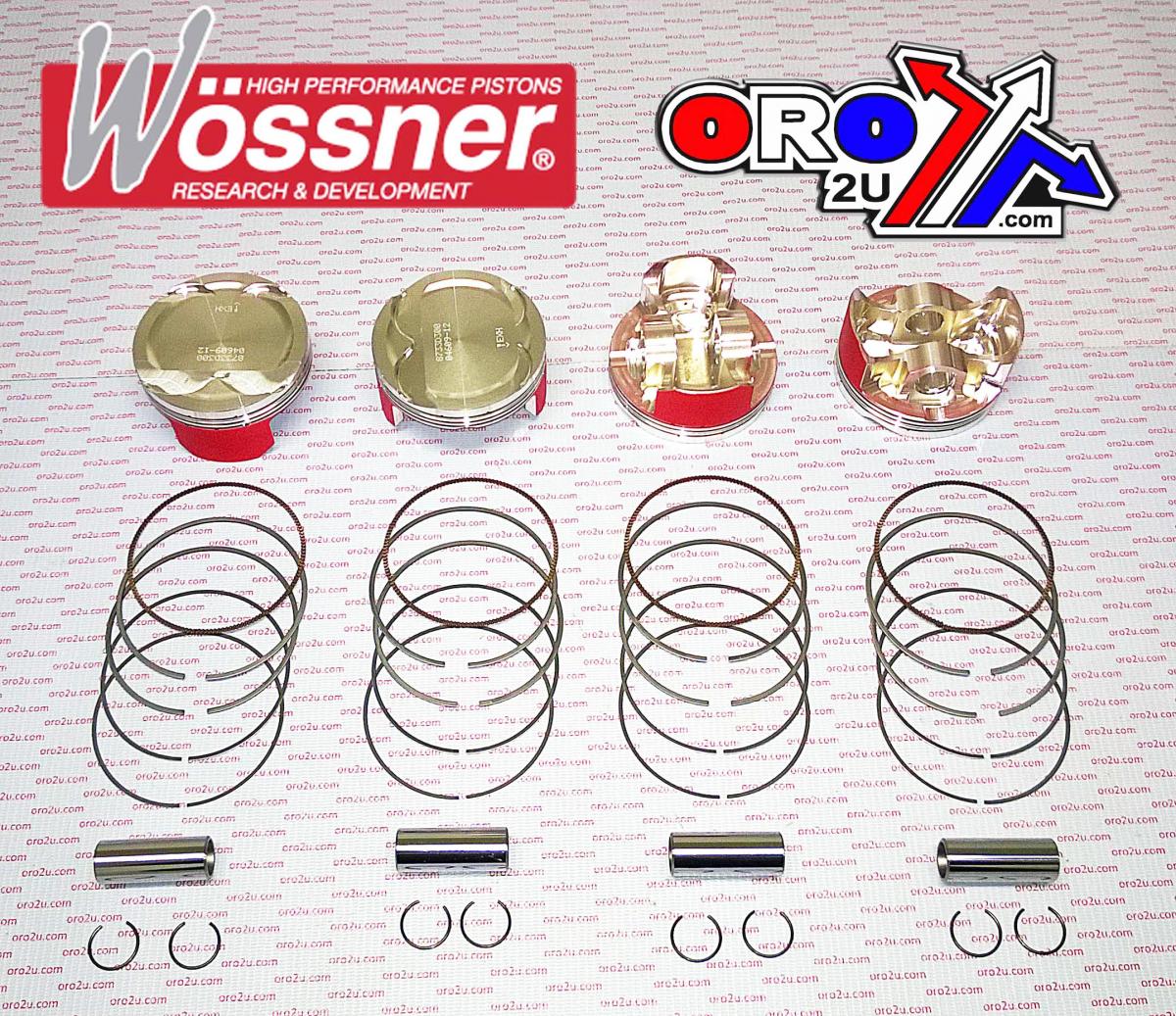

PISTON KIT SET/4 HAYABUSA 83, WOSSNER K8733D200-4 SUZUKI, 2008-2016 DISPL. 1406cc

SUZUKI
HAYABUSA GSX R 1300 2008-2016, (3 rings Pro series)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9895.200.WO (phoenixmotos.com)

CLIP No. CW18,
PIN No.WP054
RINGS No. RIK83.00A

Display (cm3) 1340 / 1406 / 1440 / 1474
Hub stroke (mm) 63.00
Clearance (mm) 0.07
Wossner compression Ratio: 9.00:1
OEM Compression ratio: 11.00:1
Dome volume (cm3) -17.80
Compression height (mm) 26.80
Theorectical weight (G)

SUZUKI HAYABUSA GSX R 1300 2008-2016,
PISTON KIT SET/4 HC 3-RING WOSSNER K8733D200-4 O/S +2.00mm BORE 83.00mm.
DISPLACEMENT 1406cc
