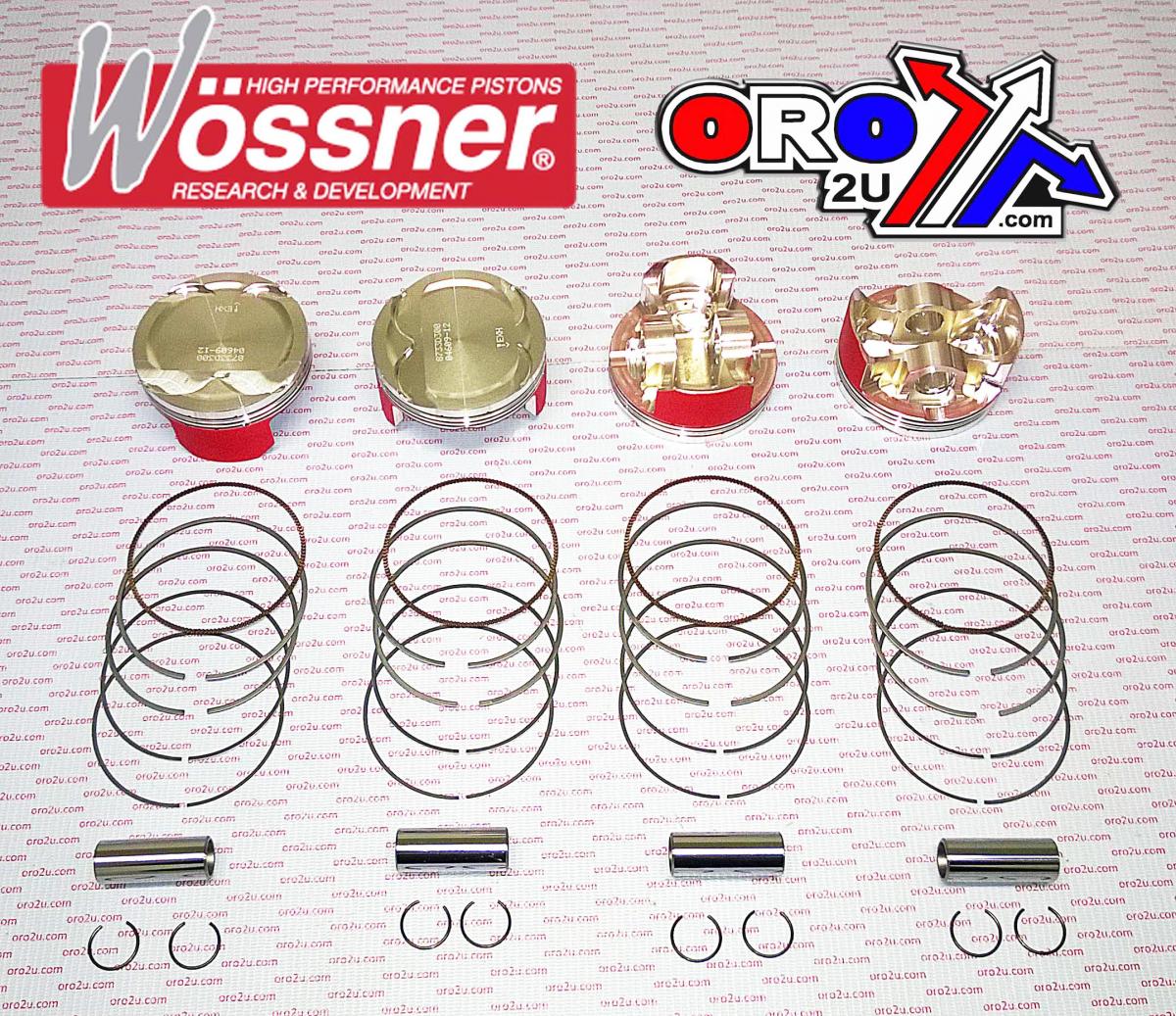

PISTON KIT SET/4 HAYABUSA 81, WOSSNER K8733DA-4 SUZUKI, 2008-2016 DISPL. 1340cc

SUZUKI
HAYABUSA GSX R 1300 2008-2016, (3 rings Pro series)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9895.000.WO (phoenixmotos.com)

CLIP No. CW18,
PIN No.WP054
RINGS No. RIK81.00A

Display (cm3) 1340 / 1406 / 1440 / 1474
Hub stroke (mm) 63.00
Clearance (mm) 0.07
Wossner compression Ratio: 9.00:1
OEM Compression ratio: 11.00:1
Dome volume (cm3) -17.80
Compression height (mm) 26.80
Theorectical weight (G)

PISTON KIT SET/4 HC 3-RING WOSSNER K8733DA-4 STD BORE 81.00mm.
DISPLACEMENT 1340cc

Wossner is the innovative specialist for high performance pistons and cylinder blocks. Wossner products are to be found in engines operating at the highest levels of motor sport competition and in everyday use.Wossner products are the source of the superior power behind the success of well known motor sport teams at national and international race meets.
COMP.RATIO

COMP.HEIGHT 24.00mm
