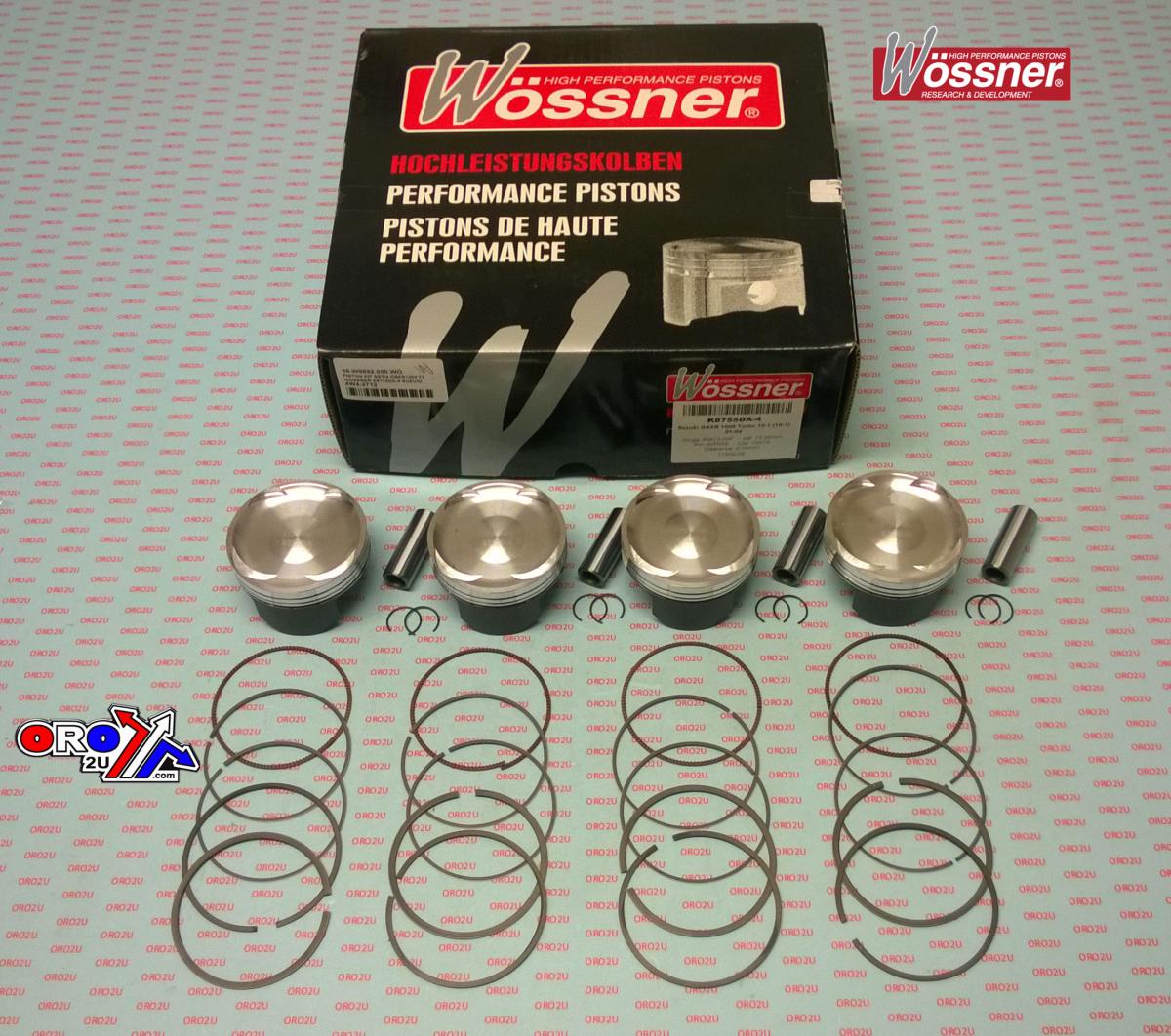

PISTON KIT SET/4 GSXR1000 73, WOSSNER K8755DA-4 SUZUKI, TURBO 2001-2004

SUZUKI
GSXR1000 TURBO 2001-2004,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9892.000.WO (phoenixmotos.com)
SUZUKI GSX1000 TURBO 2001-2004,
PISTON KIT SET/4 WOSSNER K8755DA-4 STD 73.00mm.

CLIP No. CW16,
PIN No. WP059,
RINGS No. 730XAS

Display (cm3) 988 / 1042
Hub stroke (mm) 59.00
Clearance (mm) 0.04
Wossner compression Ratio: 10.00:1
OEM Compression ratio: 12.00:1
Dome volume (cm3) -12.10
Compression height (mm) 22.55
Theorectical weight (G)

DISPLACEMENT 988cc
