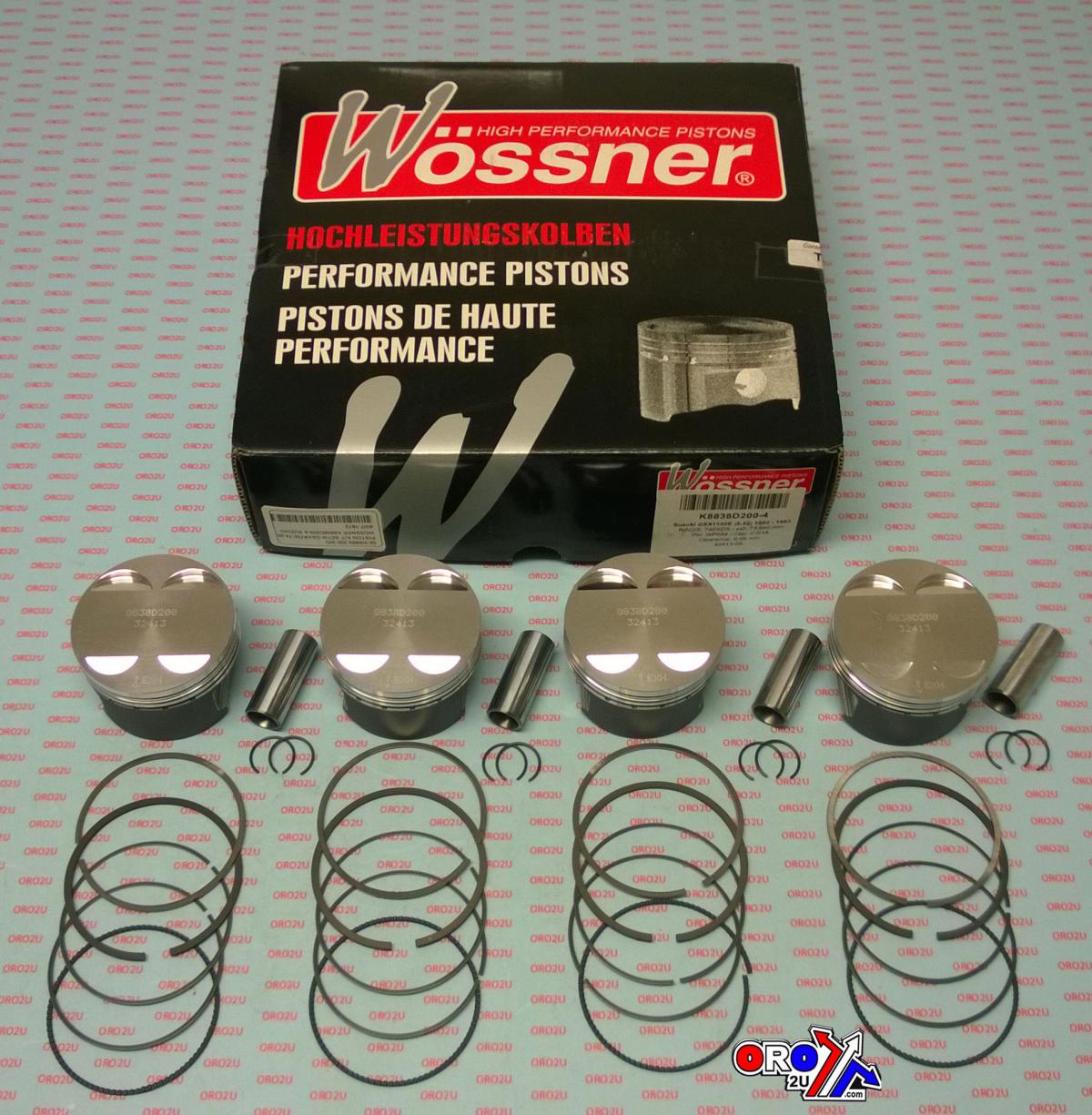

PISTON KIT SET/4 GSX1100 74.00, WOSSNER K8838D200-4 SUZUKI, OVERSIZE 2.00mm

Piston kit 74mm Bore 73.94 Wossner SET/4 K8838D200-4 (+2mm)

SUZUKI
GSX1100E 1980 - 1983,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9889.200.WO (oro2u.com)
SUZUKI GSX1100E 1980 - 1983
PISTON KIT SET/4 WOSSNER K8838D200-4 O/S 2.00mm 74.00mm.

CLIP No. CW18,
PIN No. WP054,
RINGS No. 740XDS

Display (cm3) 1134
Hub stroke (mm) 44.7
Clearance (mm) 0.06
Wossner compression Ratio: 11.70:1
OEM Compression ratio: 10.90:1
Dome volume (cm3) +5.70
Compression height (mm) 23.80
Theorectical weight (G)
