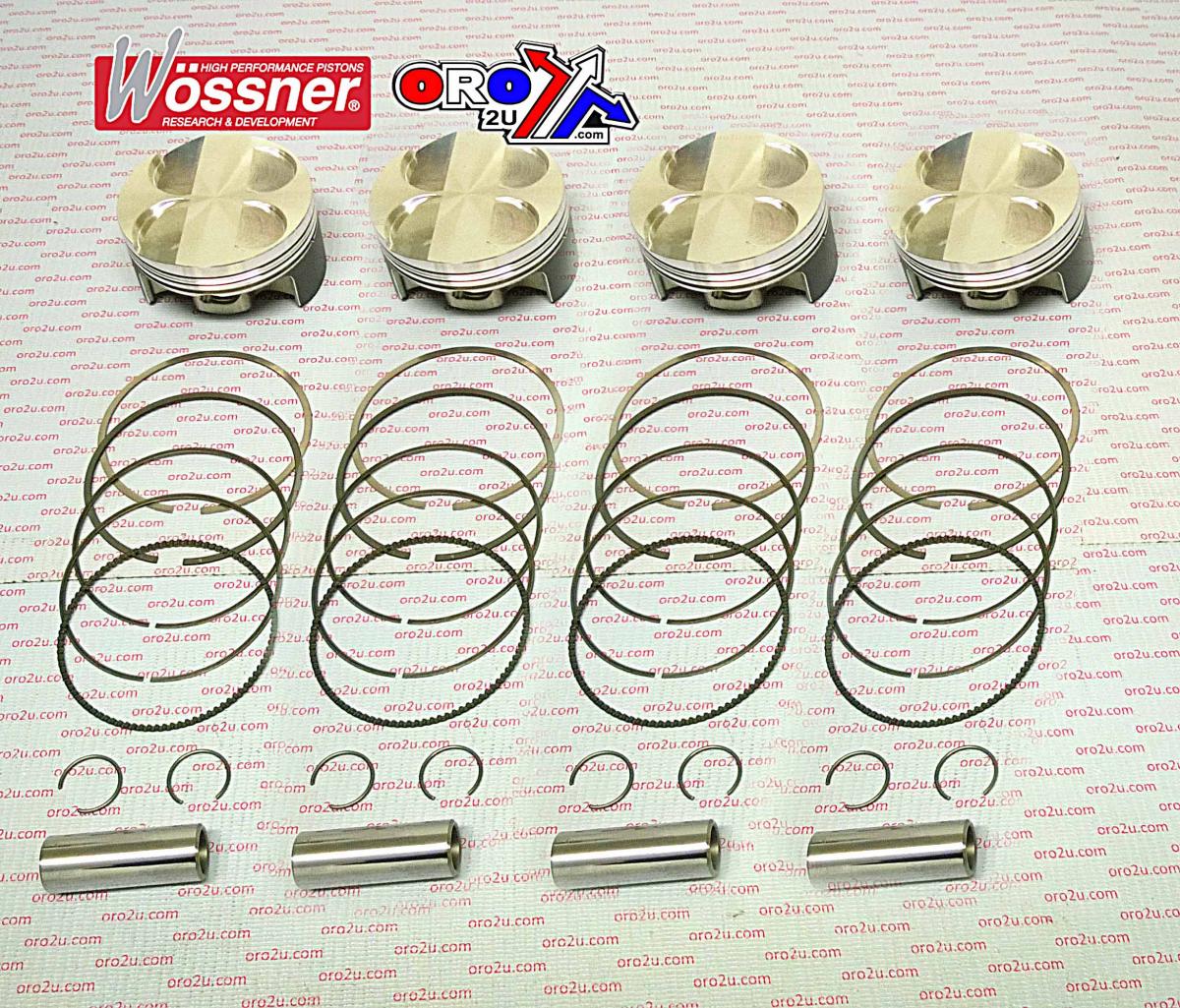

PISTON KIT SET/4 CBR954RR, WOSSNER K8804DA-4 75.00mm

HONDA
CBR954RR 2002-2004,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9883.00A.WO (phoenixmotos.com)
PISTON KIT SET/4 WOSSNER K8804DA-4 STD 75.00mm.
Clip part no - CW17
Piston pin- WP083

Display (cm3) 954
Hub stroke (mm) 54.00
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 11.50:1
Dome volume (cm3) -3.10
Compression height (mm) 23.50
Theorectical weight (G) 186.00

Comp. Ratio 11.5:1
Wossner is the innovative specialist for high performance

pistons and cylinder blocks. Wossner products are to be found in engines operating at the highest levels of motor sport competition and in everyday use.Wossner products are the source of the superior power behind the success of well known motor sport teams at national and international race meets.
