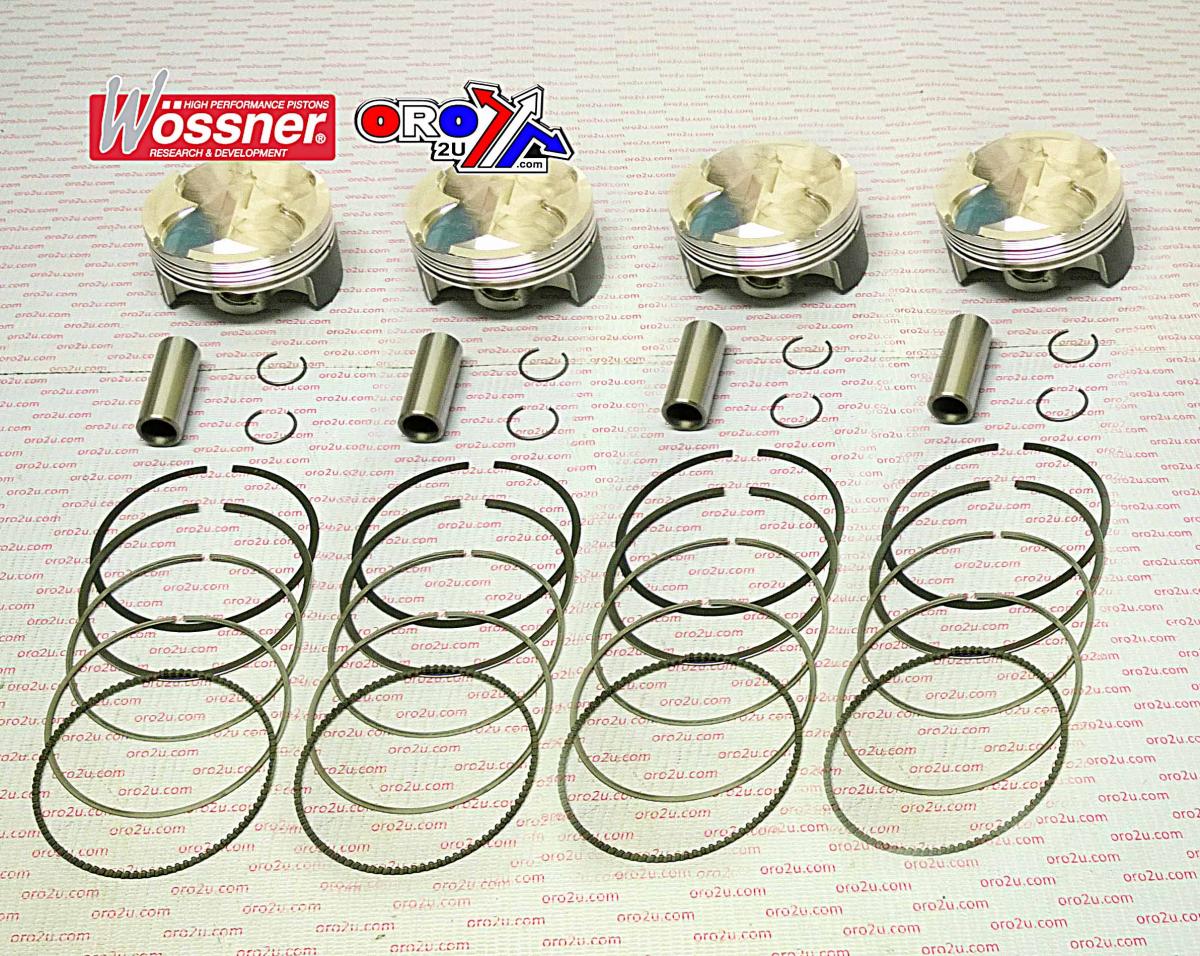

PISTON KIT SET/4 CBR1000RR, WOSSNER K8742DA-4 75.00mm

HONDA
CBR1000RR 2004-2007,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9884.00A.WO (phoenixmotos.com)
PISTON KIT SET/4 WOSSNER K8742DA-4 STD 75.00mm.
Clip part no - CW17
Piston pin- WP083
Ring set - 750XKS

Display (cm3) 998
Hub stroke (mm) 56.50
Clearance (mm) 0.05
Wossner compression Ratio: 13.50:1
OEM Compression ratio: 12.20:1
Dome volume (cm3) +0.00
Compression height (mm) 23.50
Theorectical weight (G)
