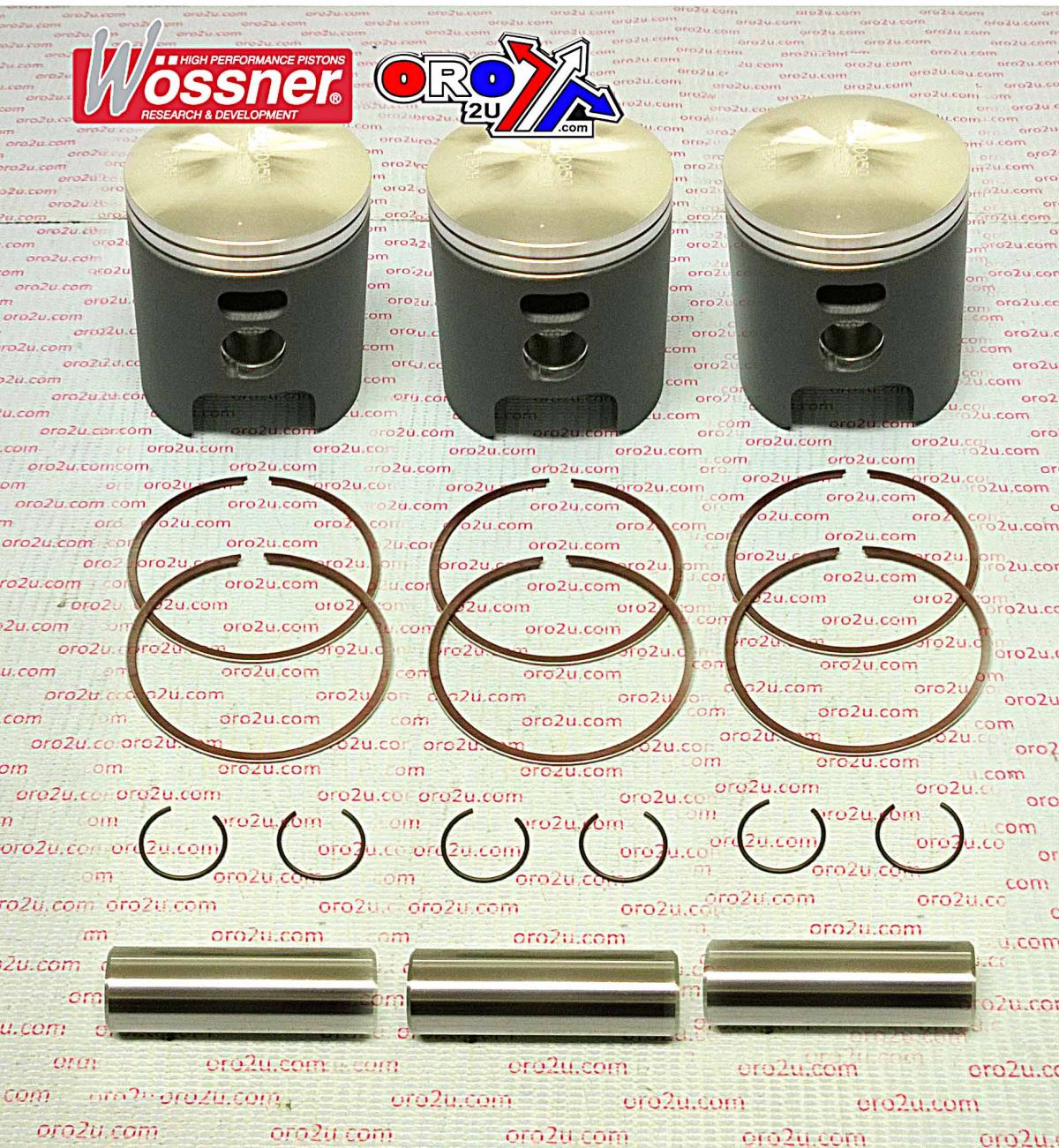

PISTON KIT SET/3 KAW. 500 KH, WOSSNER K8247D200-3 62.00mm

KAWASAKI
500S 1969 - 1976,
500 H1 1969 - 1976,
500 KH 1969 - 1976,
Triple Cylinder.

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9867.200.WO (phoenixmotos.com)
KAWASAKI 500 S / 500 H1 / 500 KH 1969-1976,
PISTON KIT SET/3 WOSSNER K8247D200-3 OS 2.00 62.00mm.

Clip part no - CW16
Piston pin- WP041
Ring set - RSB6200 x 2

Display (cm3) 498
Hub stroke (mm) 58.80
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 31.90
Theorectical weight (G) 177.00

Wossner is the innovative specialist for high performance pistons and cylinder blocks. Wossner products are to be found in engines operating at the highest levels of motor

sport competition and in everyday use.Wossner products are the source of the superior power behind the success of well known motor sport teams at national and international race meets.
