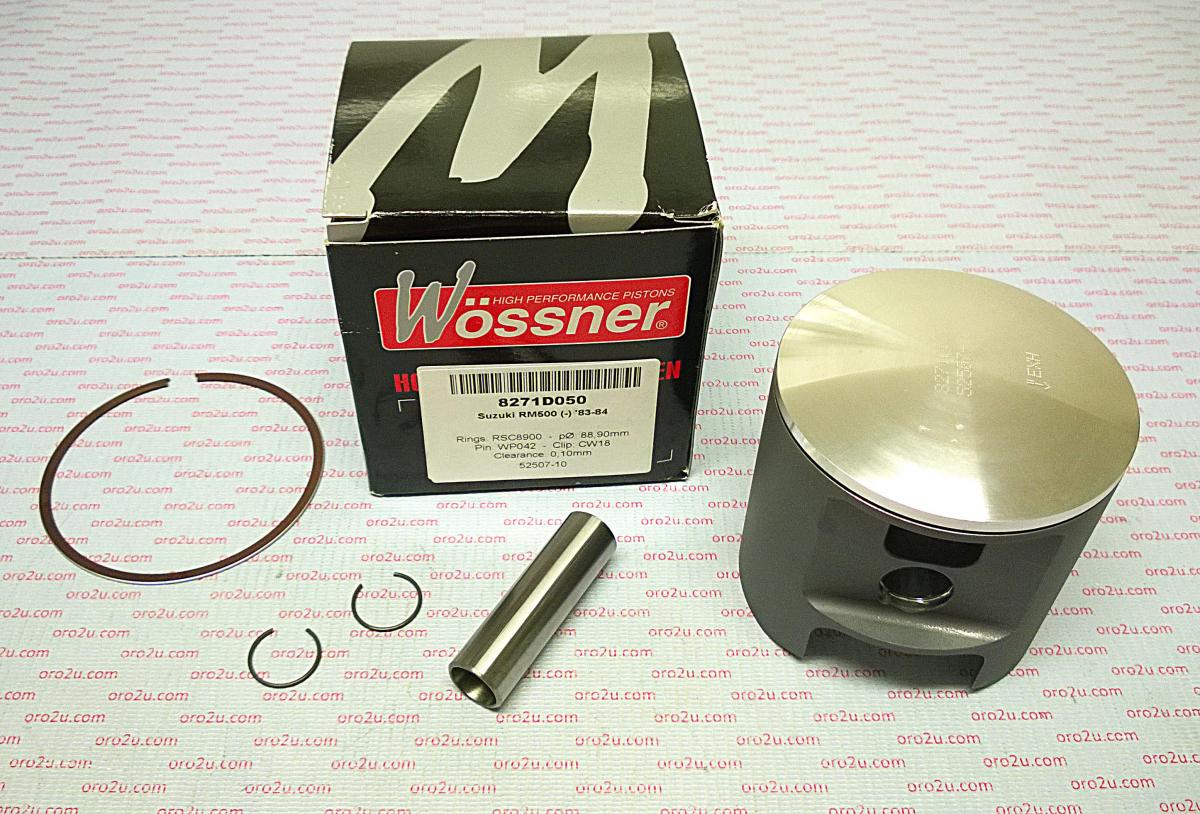

PISTON KIT RM500 88.40mm, FORGED WOSSNER KIT 8271DA 12110-14221

Piston kit 88.50mm Bore 88.40 Wossner 8271DA (STD)

Suzuki
RM500 1982-1985,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Display (cm3) 500
Part No. 56-W049.A.WO (oro2u.com)
Lock P/N CW18
Pin P/N WP042
Ring Set P/N RSC8850

Hub stroke (mm) 80.00
Clearance (mm) 0.10
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 41.50
Theorectical weight (G)

Cross reference numbers ONLY.
12110-14221,
