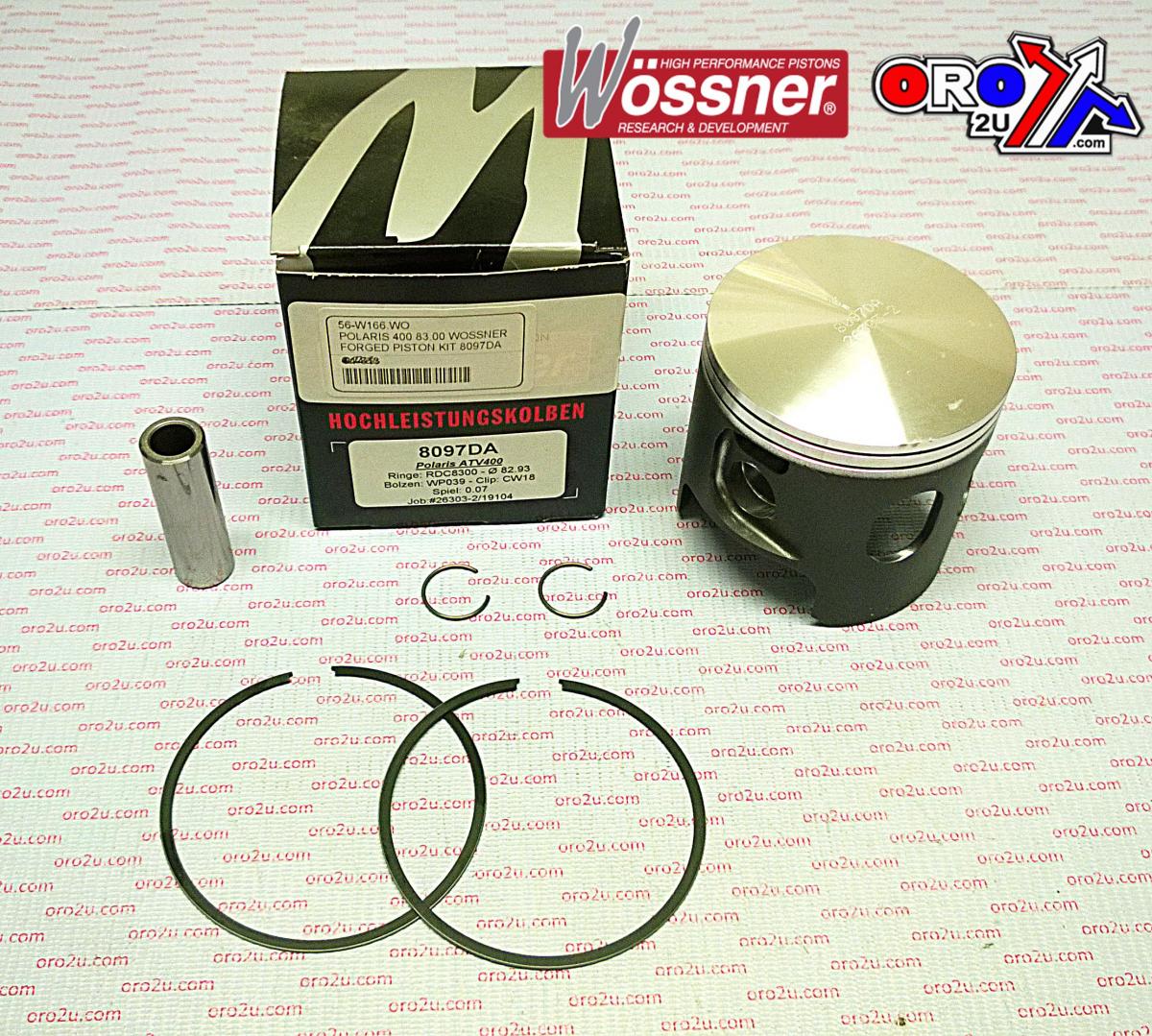

PISTON KIT POLARIS 400 83.00, FORGED WOSSNER 8097DA

Piston Kit 83.00mm Bore 82.93 Wossner 8097DA (STD)

POLARIS
400L 1994-03,
400 Xplorer/Sport 1993-02,
400 Scrambler 1995-02,
400 Trail Blazer 1994-03,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W166.WO (oro2u.com)
Wossner Piston 83.00 mm Bore (PN# 8097DA) Application Polaris
Lock P/N CW18
Pin P/N WP039
Ring Set P/N RSC8300 X 2

Display (cm3) 378
Hub stroke (mm) 70.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)
