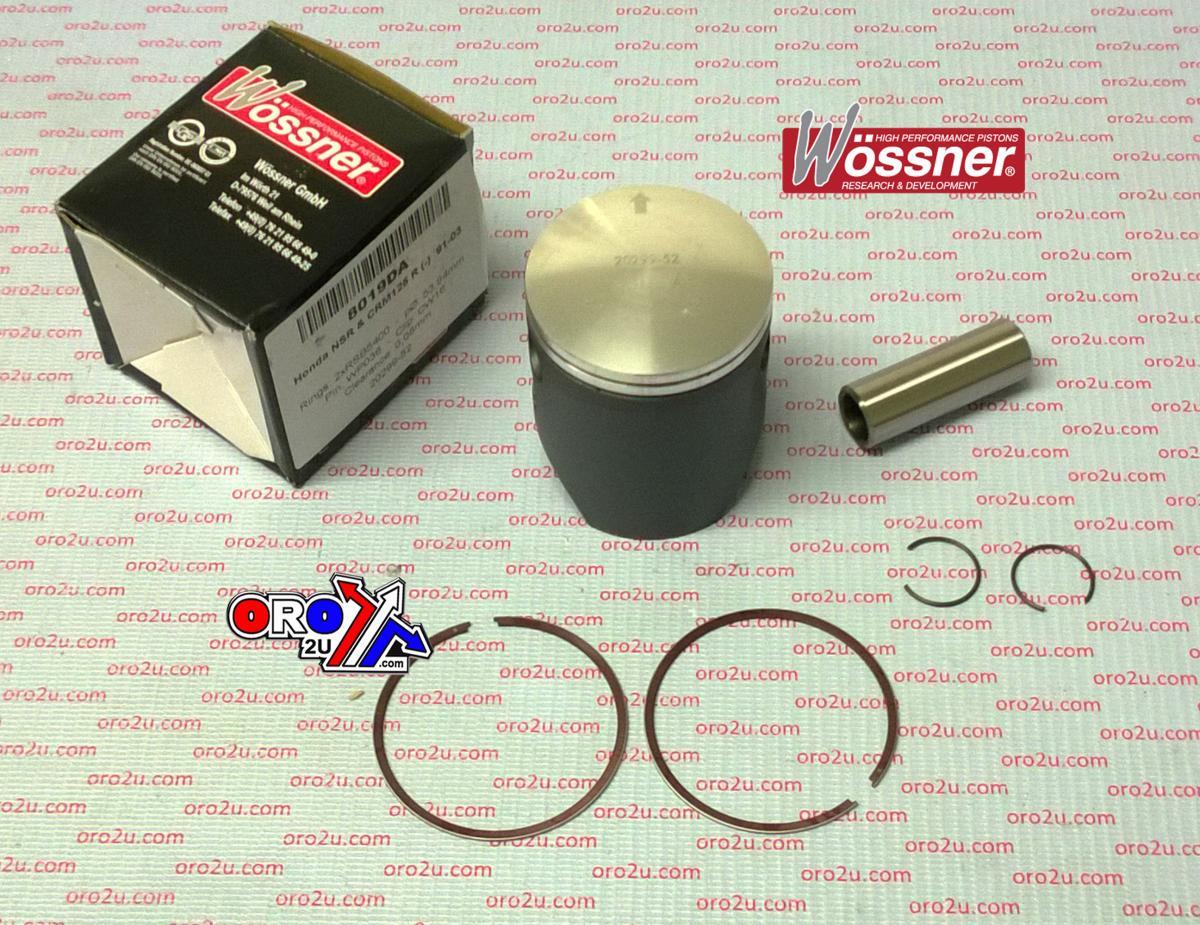

PISTON KIT NSR125 C 54.00mm, WOSSNER 8019DC HONDA ROAD

Piston kit 54.00mm bore 53.95 Wossner 8019DC (+0.02MM)

HONDA
CRM R 125 '1986-' 2006,
NSR R 125 built 1988-2003

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

56-W906+00C.WO (Wossner 8019DC)
RINGS. (2x)RSB5400
CLIPS. CW16
PIN. WP036

Display (cm3) 124
Hub stroke (mm) 54.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 30.00
Theorectical weight (G)
