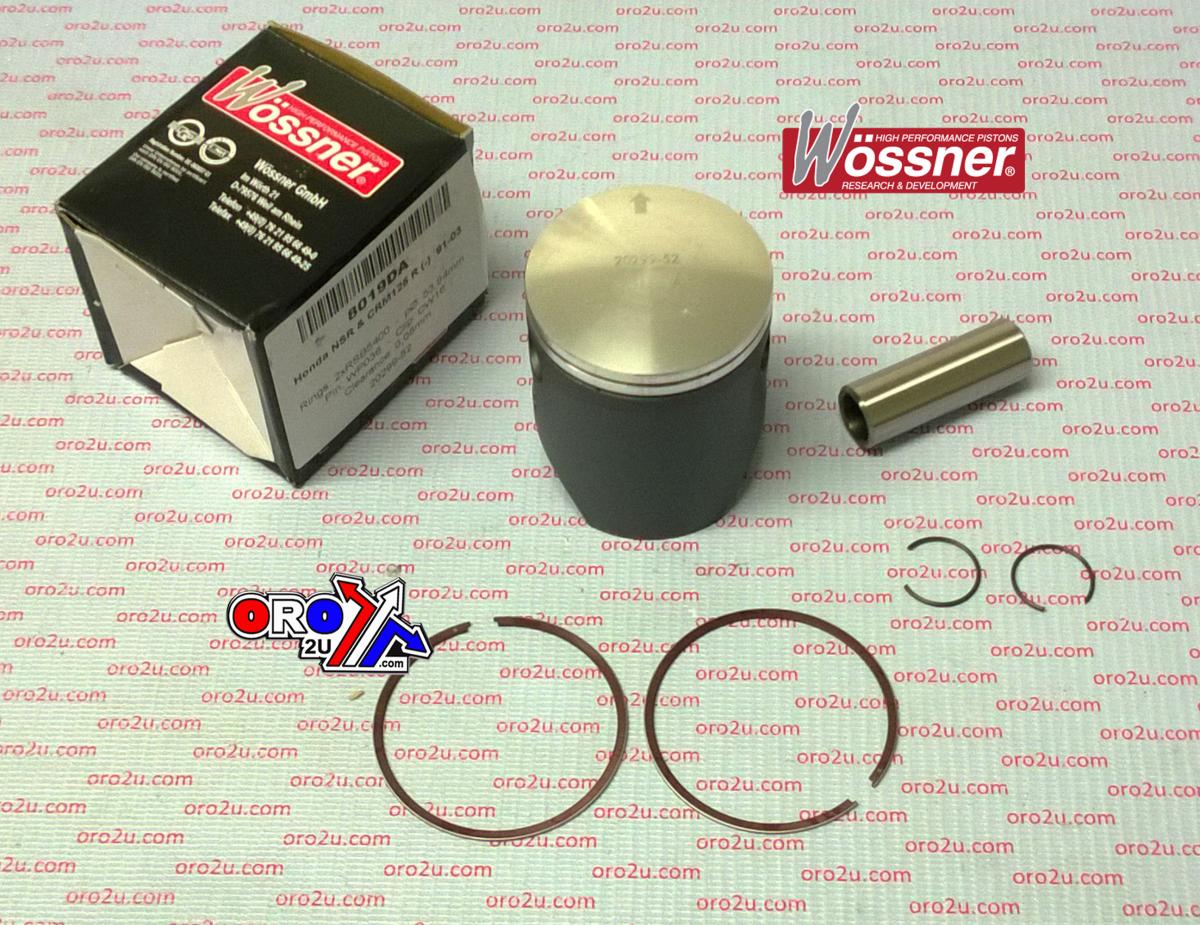

PISTON KIT NSR125 A 54.00mm, WOSSNER 8019DA HONDA ROAD

Piston kit 54.00mm BORE 53.94 Wossner 8019DA (STD)

HONDA
CRM R 125 1991 - 03
NSR R 125 1991 - 03

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

56-W906+000.WO (Wossner 8019DA)
Parts.
RINGS. (2x)RSB5400
CLIPS. CW16
PIN. WP036

Display (cm3) 124
Hub stroke (mm) 54.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 30.00
Theorectical weight (G)
