PISTON KIT NSR125 54.50mm, WOSSNER 8019D050 HONDA ROAD

Piston kit 54.50mm Bore 54.44 Wossner 8019D050 (+0.50mm)

HONDA
CRM R 125 '1986-' 2006,
NSR R 125 built 1988-2003

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

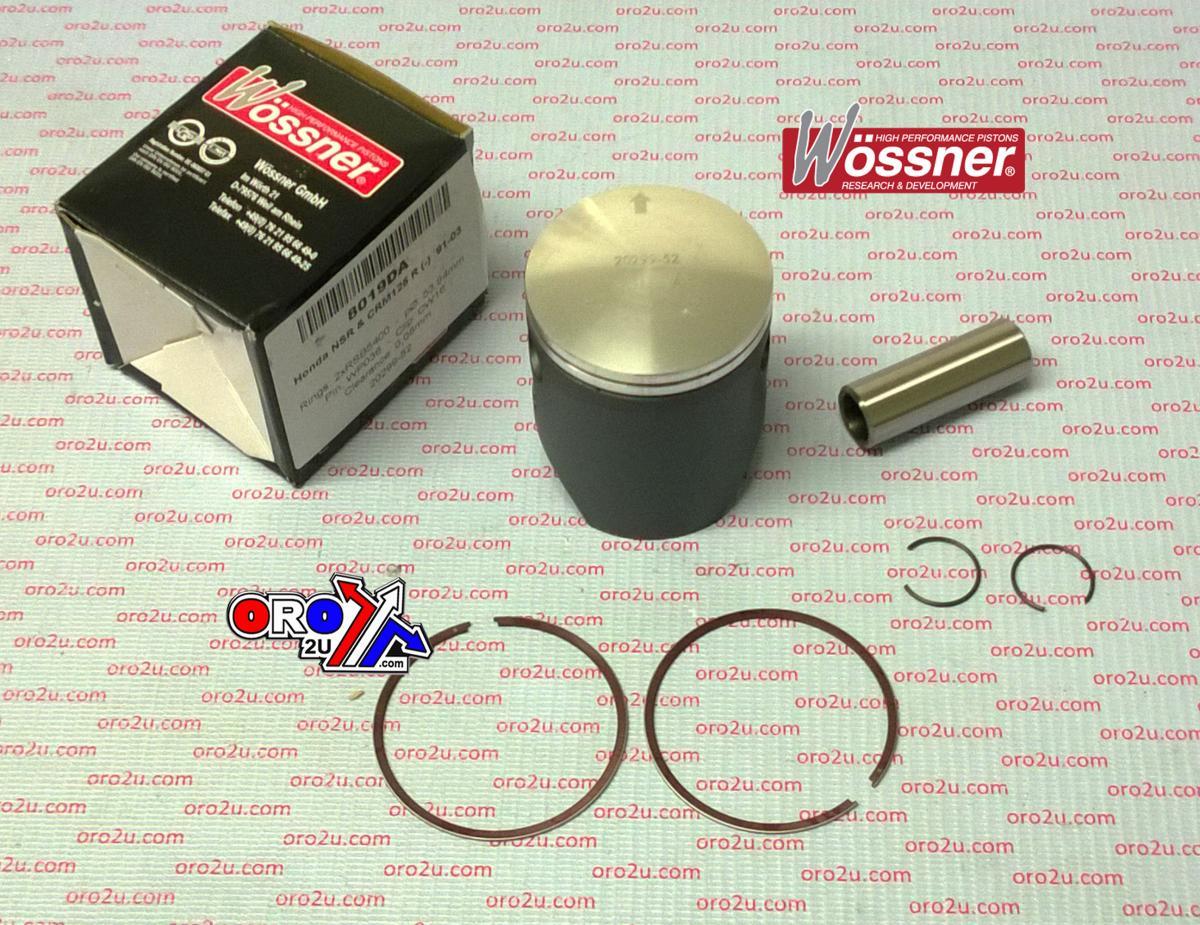

High quality Piston kit. Consist of pistons, rings, bolts and circlips.

56-W906+050.WO (8019D050)
RINGS. (2x)RSB5450
CLIPS. CW16
PIN. WP036

Display (cm3) 124
Hub stroke (mm) 54.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 30.00
Theorectical weight (G)
