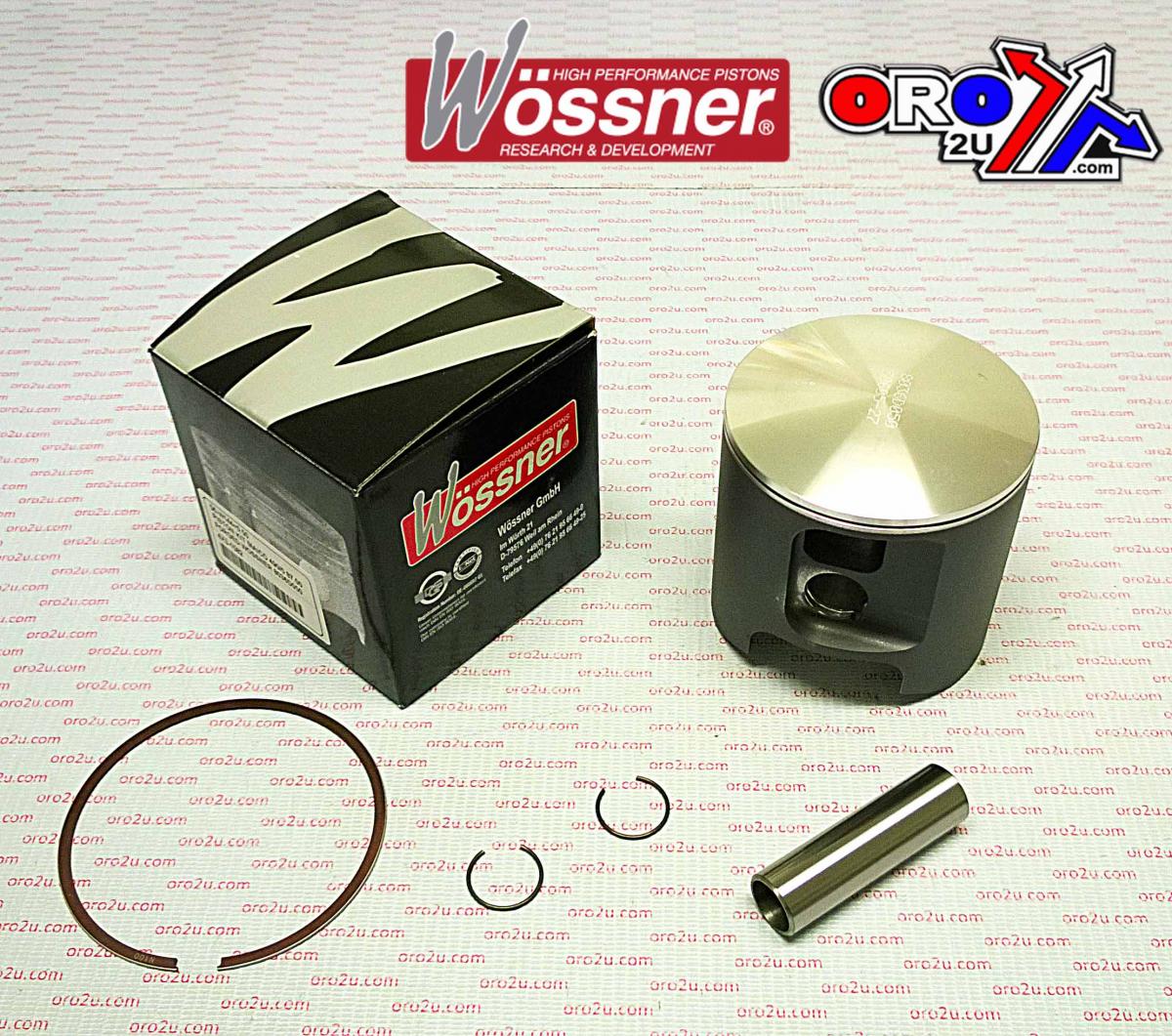

PISTON KIT MAICO 490/500 87.50, FORGED WOSSNER 8036D100

Piston Kit 87.50mm Bore 87.42 Wossner 8036D100 (+1.00)

MAICO
MC 490 1980,
GS 490 1980,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W144+1.00 (oro2u.com)
Wossner Piston Maico 490 87.5 mm Bore (PN# 8036D100)
Lock P/N CW18
Pin P/N WP042
Ring Set P/N RSC8750

Display (cm3) 488
Hub stroke (mm) 83.00
Clearance (mm) 0.08
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 41.70
Theorectical weight (G)
