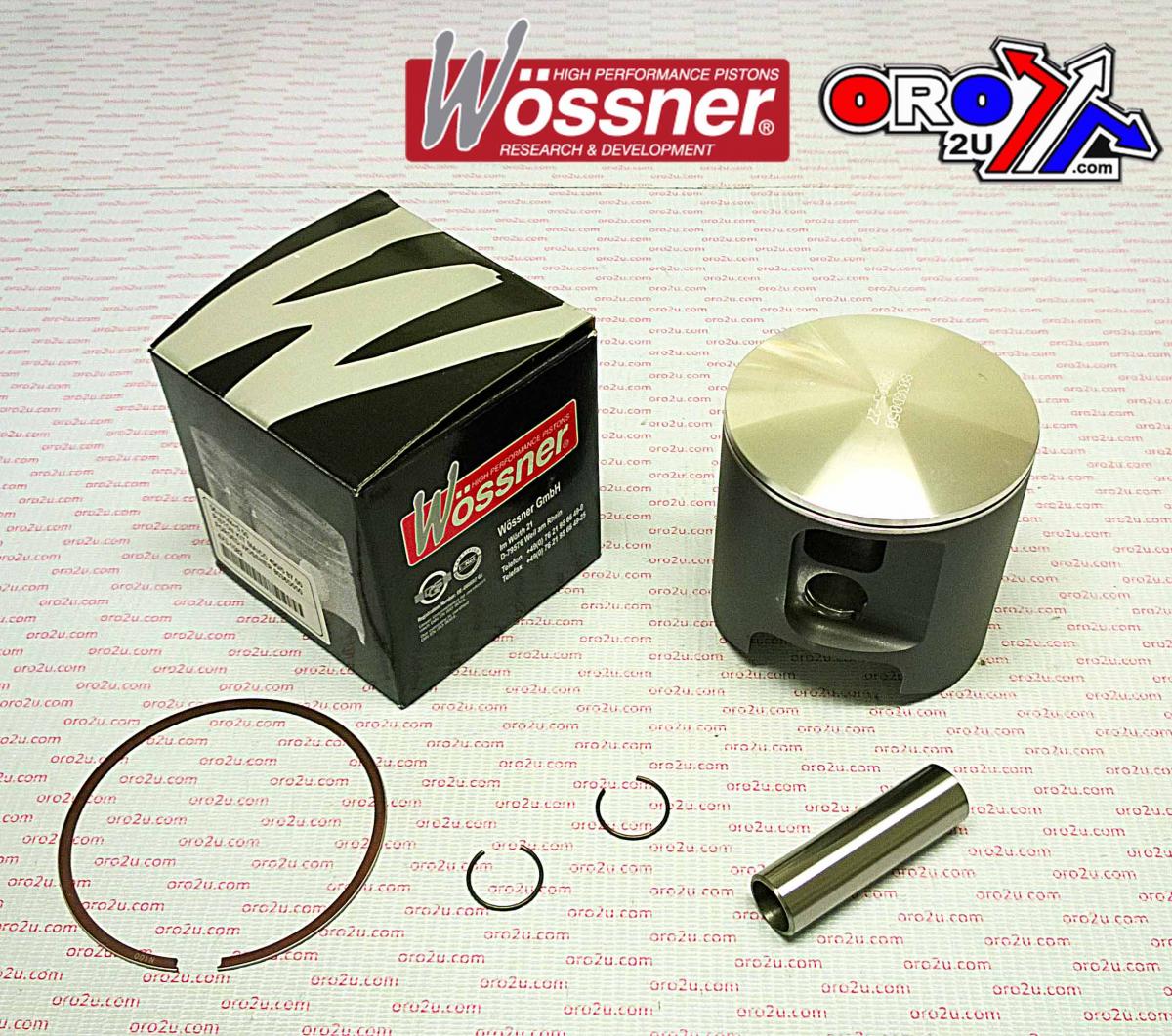

PISTON KIT MAICO 490/500 86.50, FORGED WOSSNER KIT 8036DA

Wossner forged piston kit designed for Maico 490 models with an 86.50mm bore. Engineered for optimal heat transfer and uniform bearing surface distribution, preventing piston collapse. Manufactured in Germany for durability and precision.

Features

• Forged construction for superior strength and durability
• Optimized heat transfer for improved engine performance
• Elliptical design ensures even pressure distribution, reducing localized stress
• Manufactured in Germany for high-quality performance

Specifications

• Bore Size: 86.50mm
• Actual Bore: 83.42mm
• Displacement: 488 cm³
• Stroke: 83.00mm
• Clearance: 0.08mm
• Compression Ratio: 2-Stroke
• Compression Height: 41.70mm
• Lock Part Number: CW18
• Pin Part Number: WP042
• Ring Set Part Number: RSC8650

Cross-Reference OEM Part Numbers

• Wossner Piston Part Number: 8036DA

Vehicle Fitments

• Maico MC 490 (1980)
• Maico GS 490 (1980)
