Wiseco

Wiseco Forged Piston Kit 92.00 mm for Kawasaki KLX400 2003 4713M09200

Wiseco Forged Piston Kit 92.00 mm for Kawasaki KLX400 2003 4713M09200

£226.92 GBP
£226.92 GBP
Sale Sold out
Taxes included.

Wiseco 4713M09200 is a piston kit for a 92.00 mm bore.

Wiseco catalogue applications

Make Model Years
Kawasaki KLX400 2003
Suzuki DR-Z400 2000–2024
Arctic Cat 400 DVX 2004–2008
Kawasaki KFX400 2003–2006
Suzuki LT Z400 2003–2018

Specifications

  • Manufacturer part number: 4713M09200
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 92.00 MM
  • Piston Diameter: 91.92 MM
  • Piston Oversize: 2.00 MM
  • Piston Material: 2618
  • Skirt Coating: Yes

Included components

Ring Set #3622XR, Piston pin #S549, Circlip #CW20.

Cylinder preparation

Wiseco specifies: Bore / Replate.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

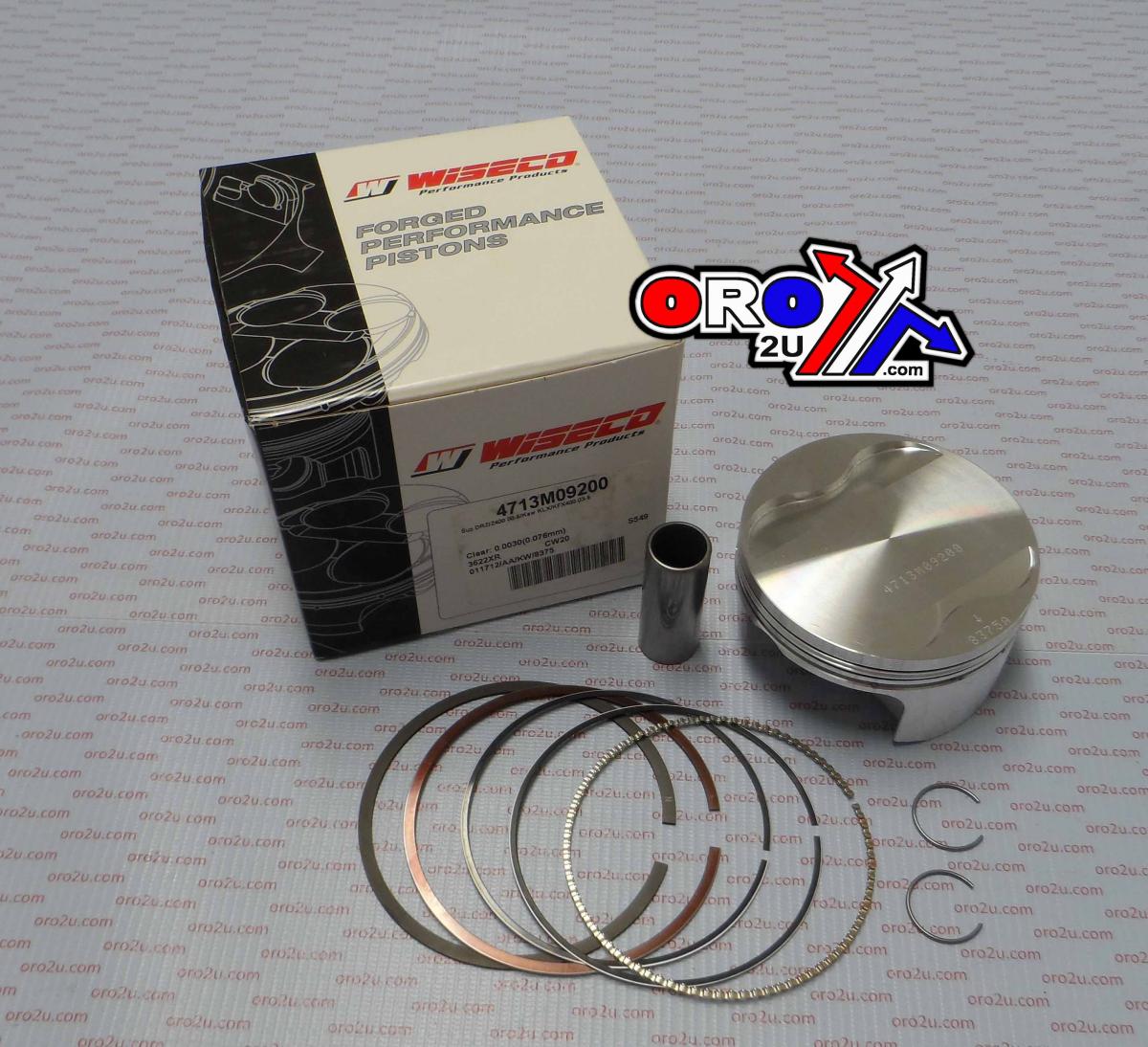

Manufacturer photograph for this reference. Packaging presentation may change.
