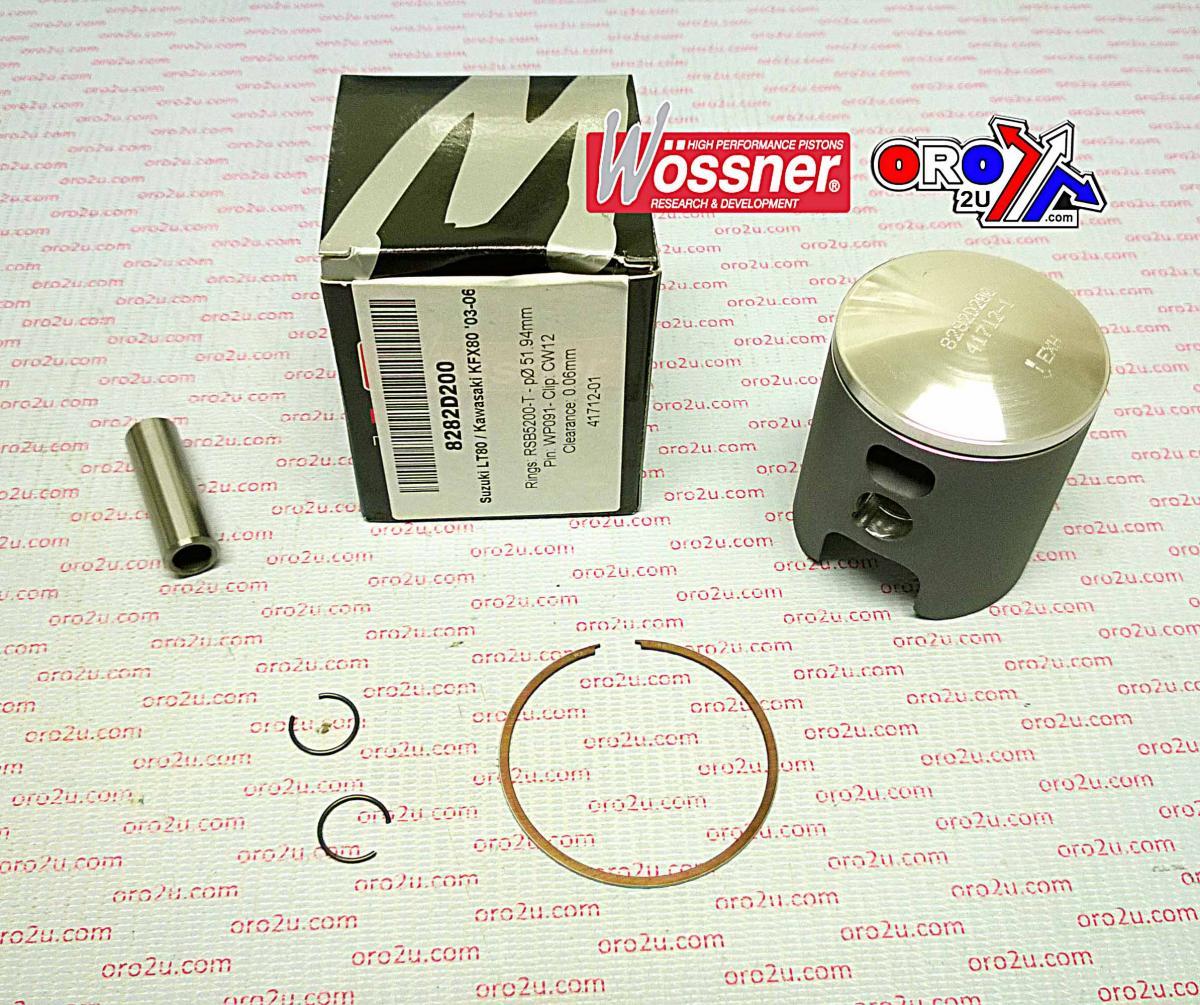

PISTON KIT LT80 KFX80 51.00, 8282D100 WOSSNER, 56-W673

KAWASAKI
KFX80 2003- 2006,
SUZUKI
LT80 1982,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W671+0.50.WO (phoenixmotos.com)
Kawasaki KFX80 2003-2006, SUZUKI LT80 1982 ,Wossner Piston 51mm Bore (PN# 8282D100)
Lock P/N CW12
Pin P/N WP059
Ring Set P/N RSB5100

Display (cm3) 82
Hub stroke (mm) 42.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 27.00
Theorectical weight (G)
