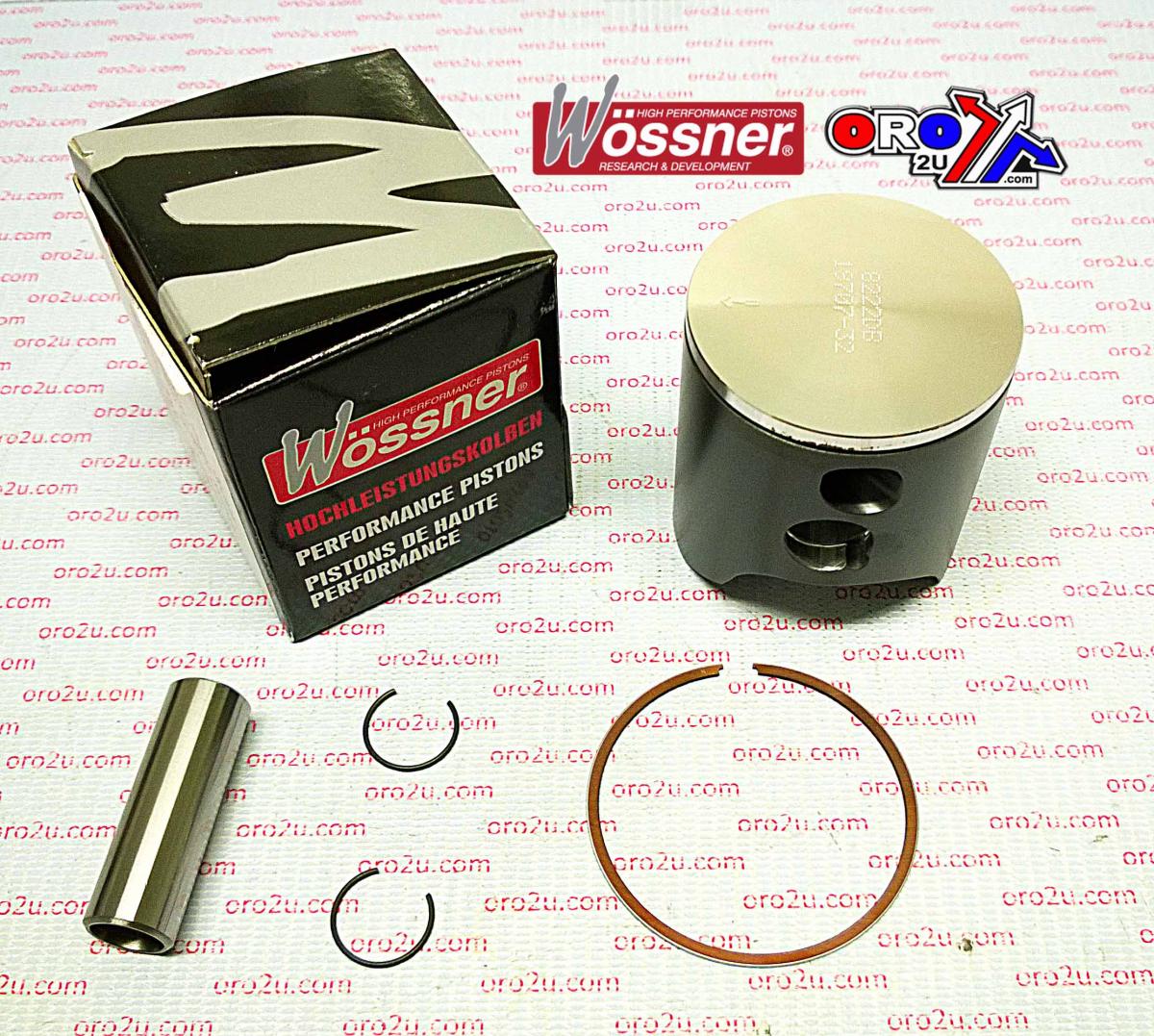

PISTON KIT KTM SX144 150 56 B, FORGED WOSSNER 8222DB

Piston Kit 56.01mm Bore 55.96 Wossner 8222DB (+0.01)

KTM
SX 144 2007 - 2008,
SX 150 2009 - 2014,
(single ring)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No.56-W036.B.WO (oro2u.com)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5600
Rod P/N P2012

Display (cm3) 144
Hub stroke (mm) 58.50
Clearance (mm) 0.05
Wossner compression Ratio: - 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 29.50
Theorectical weight (G) -
