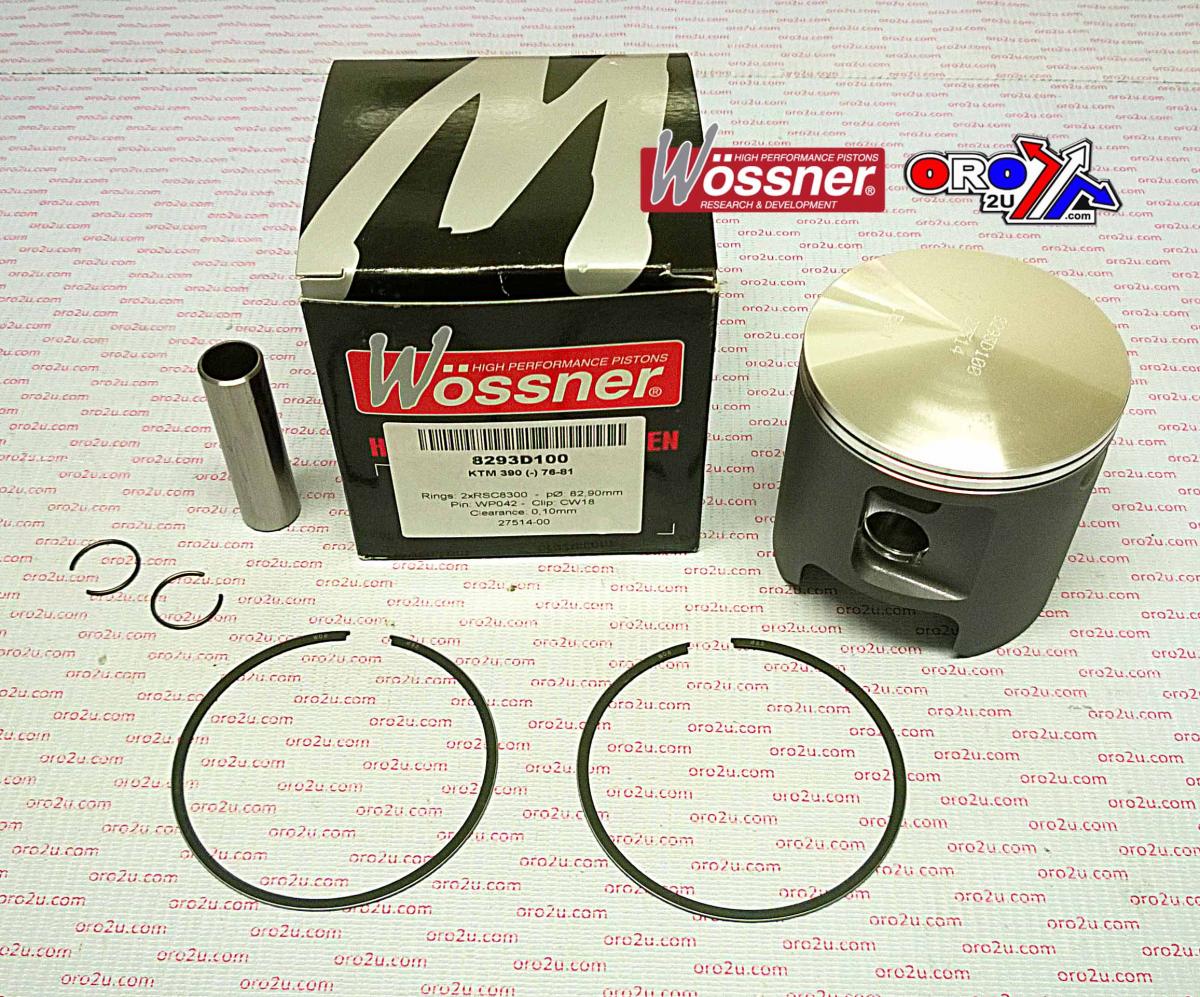

PISTON KIT KTM 400 76-81 83.00, WOSSNER 8293D100 KTM 390

KTM
GS / MC 390 / 400 1976-1981,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9877.100.WO (phoenixmotos.com)
YAMAHA YZF R6 2006-2011 4 Stroke, Comp. 13:1
WOSSNER FORGED PISTON 8293D100
Clip part no - CW18
Piston pin- WP0042
Ring set -RSC8300

Display (cm3) (390) 389 / (400) 355
Hub stroke (mm) 74.00
Clearance (mm) 0.10
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 37.70
Theorectical weight (G)
