PISTON KIT KTM 175GS 63.50, WOSSNER 8292DA KTM GS 77-82

KTM
175GS/MC 1977 - 1982,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

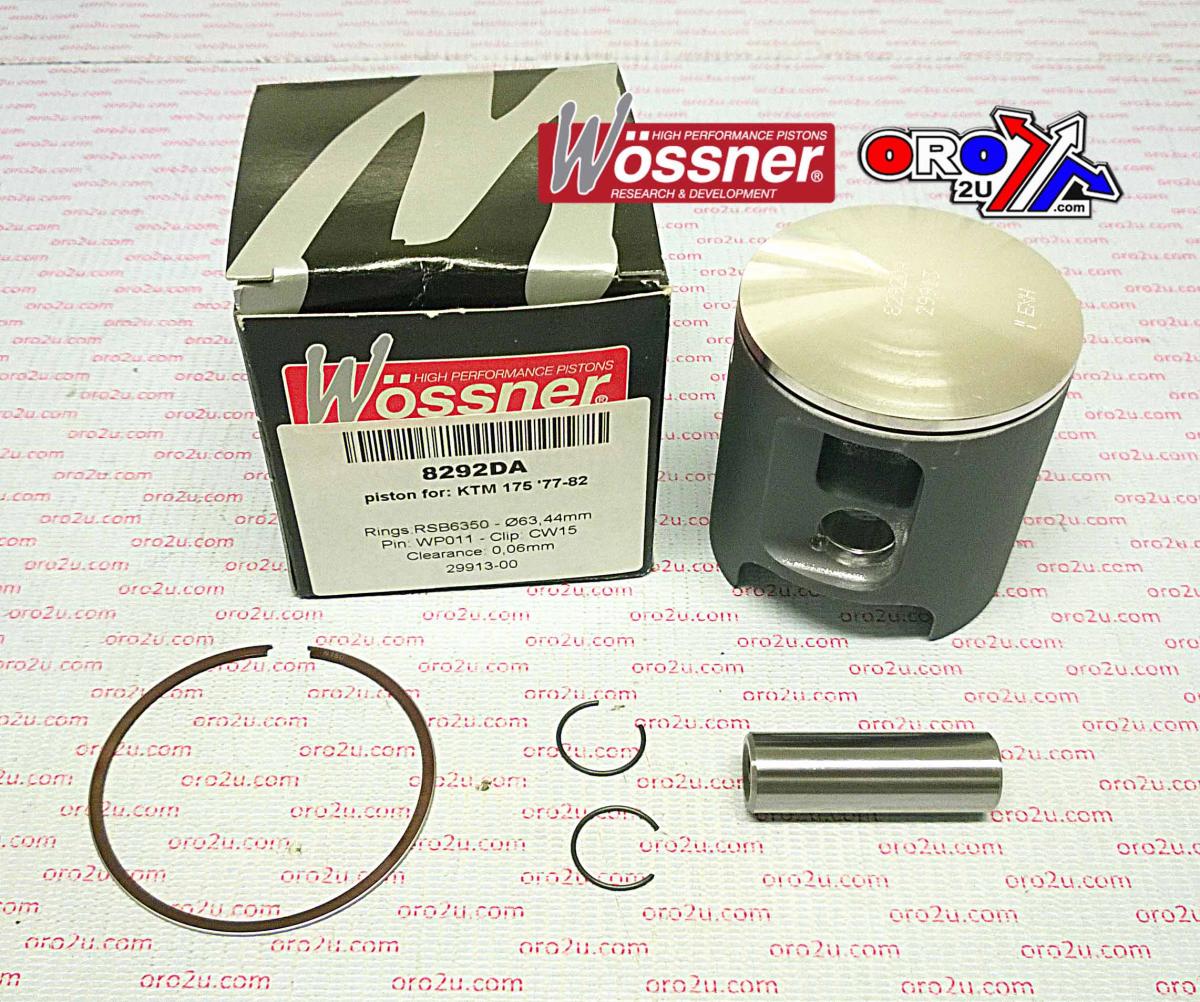

Part No. 56-W967.00A.WO (phoenixmotos.com)KTM 175 GS / MC 1977-1982,
WOSSNER 8292DA PISTON KIT FORGED KTM 175GS/MC 63.50mm
Cross reference numbers ONLY.
Lock P/N CW15
Pin P/N WP011
Ring Set P/N RSB6350

Hub stroke (mm) 54.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 12 stroke
Dome volume (cm3) -
Compression height (mm) 37.00
Theorectical weight (G)
