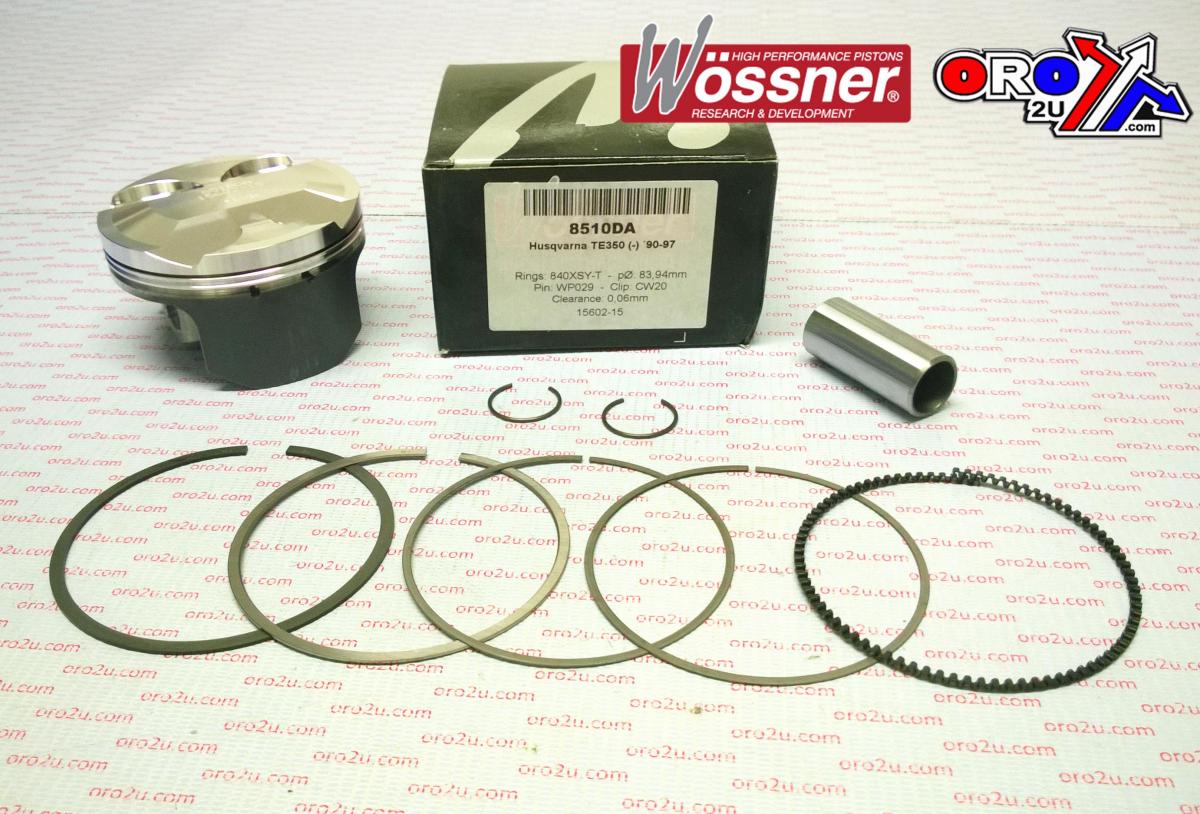

PISTON KIT HUSKY 90-97 350 84, WOSSNER 8510DA HUSQVARNA

Piston kit 84.00mm Bore 83.94 Wossner 8510DA (STD)

Husqvarna
TE 350 1990 - 1997,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W110.A (oro2u.com)
Wossner Piston Husqvarna TE350 84 mm Bore (PN# 8510DA)
Lock P/N CW20
Pin P/N WP029
Ring Set P/N 840XSY

Display (cm3) 349
Hub stroke (mm) 63.00
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 10.20:1
Dome volume (cm3) +3.60
Compression height (mm) 28.00
Theorectical weight (G)
