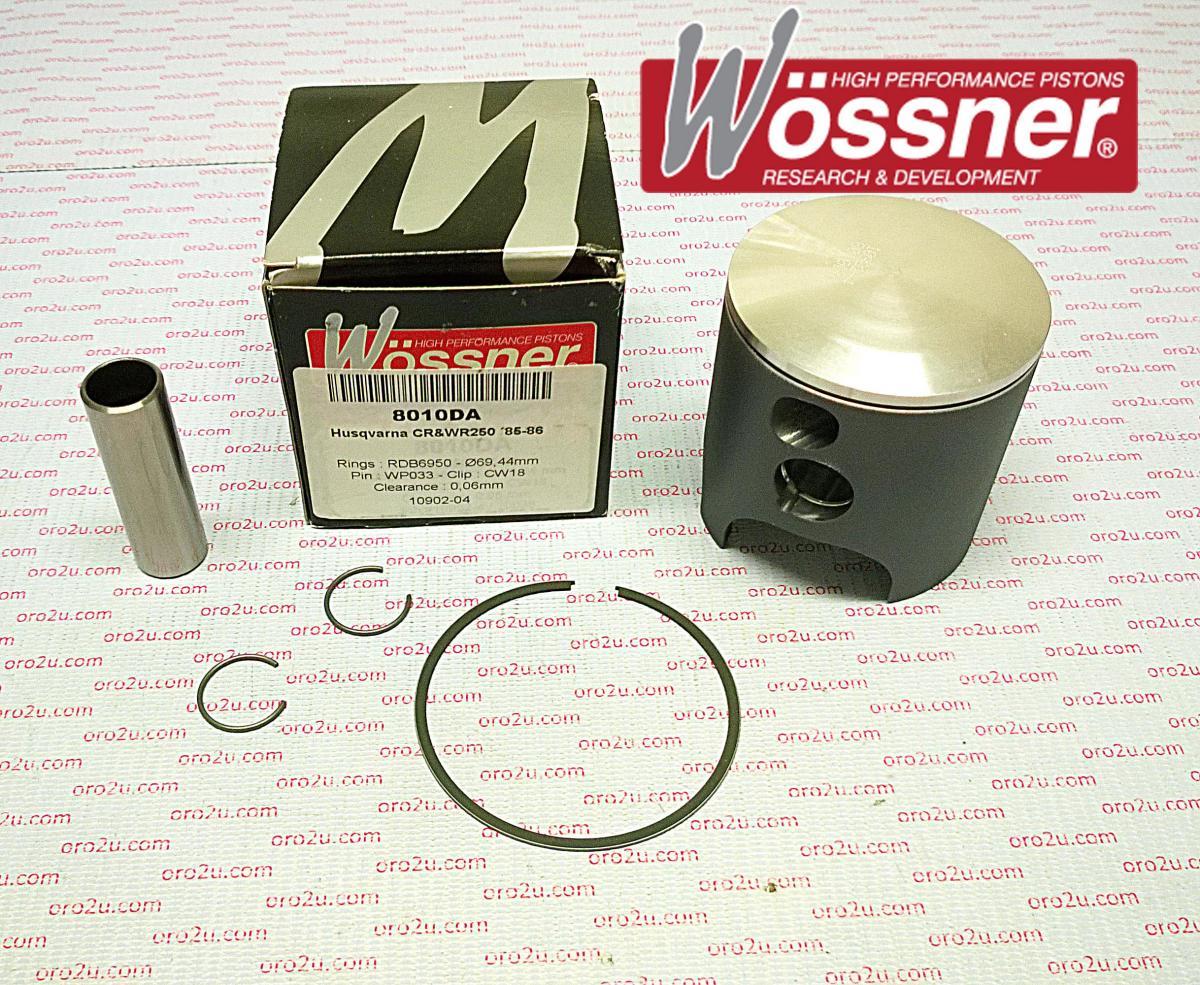

PISTON KIT HSQ 250 85-86 70.00, WOSSNER 8010D050 HUSQVARNA

Piston kit 70mm Bore 69.94 Wossner 8010D050 (+0.50)

HUSQVARNA
CR250 1985 - 1986,
WR250 1985 - 1986,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W219+050.WO (oro2u.com)
Wossner Piston Husqvarna CR250 70 mm Bore (PN# 8010D050)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB7000 x 2

Display (cm3) 249
Hub stroke (mm) 65.80
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 32.00
Theorectical weight (G)
