Wiseco Forged Piston Kit 92.50 mm 8.3:1 CR for Honda TRX500 Foreman (4V Head) 2001–2014 40173M09250

Wiseco 40173M09250 is a piston kit for a 92.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 40173M09250
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 92.50 MM
• Piston Diameter: 92.42 MM
• Piston Oversize: 0.50 MM
• Piston Material: 2618
• Skirt Coating: Yes
• Compression Ratio Actual: 8.3:1

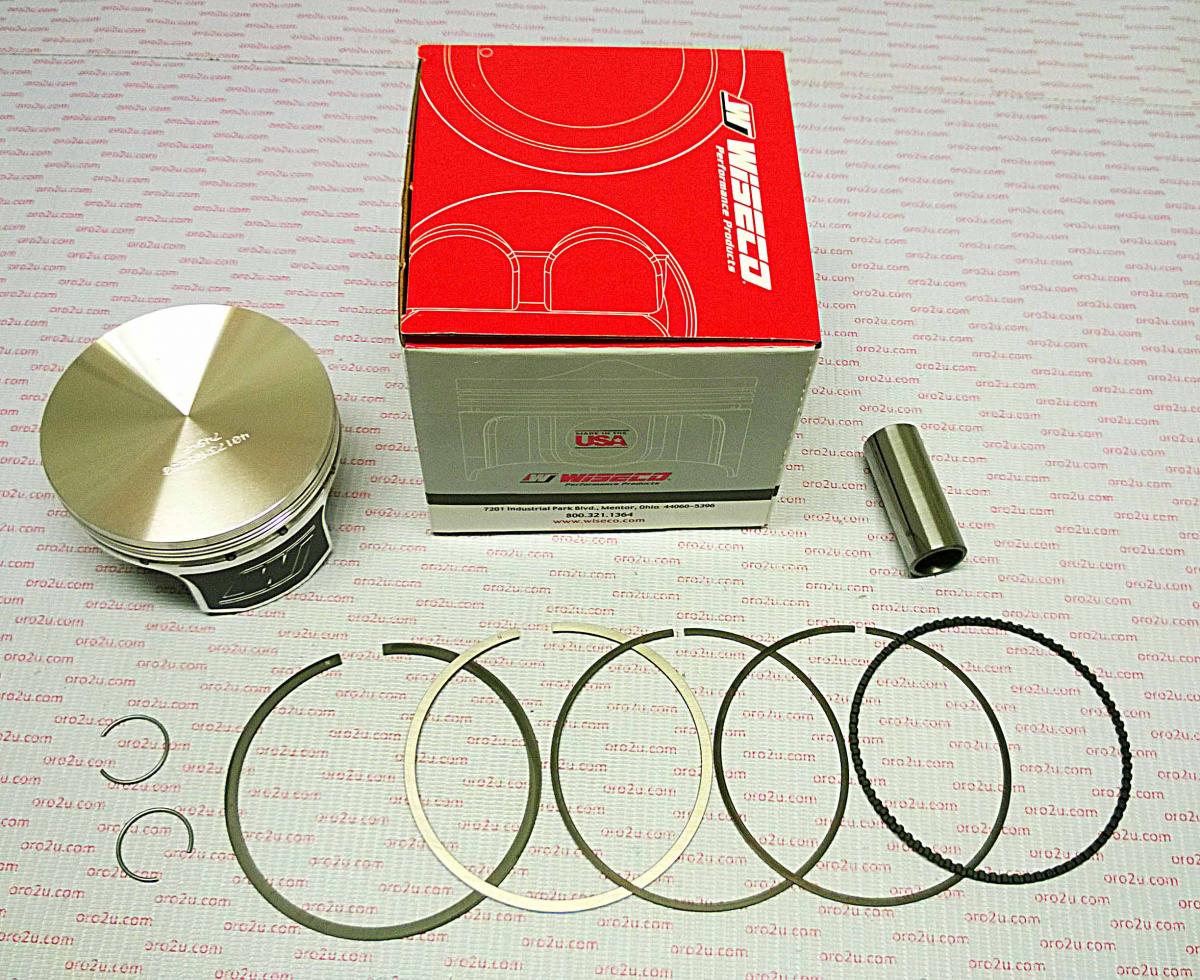

Included components

Ring Set #9250XX, Piston pin #S549, Circlip #CW20.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
