Wiseco Forged Piston Kit 92.00 mm 8.3:1 CR for Honda TRX500 Foreman (4V Head) 2001–2014 40173M09200

Wiseco 40173M09200 is a piston kit for a 92.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 40173M09200
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 92.00 MM
• Piston Diameter: 91.92 MM
• Piston Oversize: STD
• Piston Material: 2618
• Skirt Coating: Yes
• Compression Ratio Actual: 8.3:1

Included components

Ring Set #9200XX, Piston pin #S549, Circlip #CW20.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

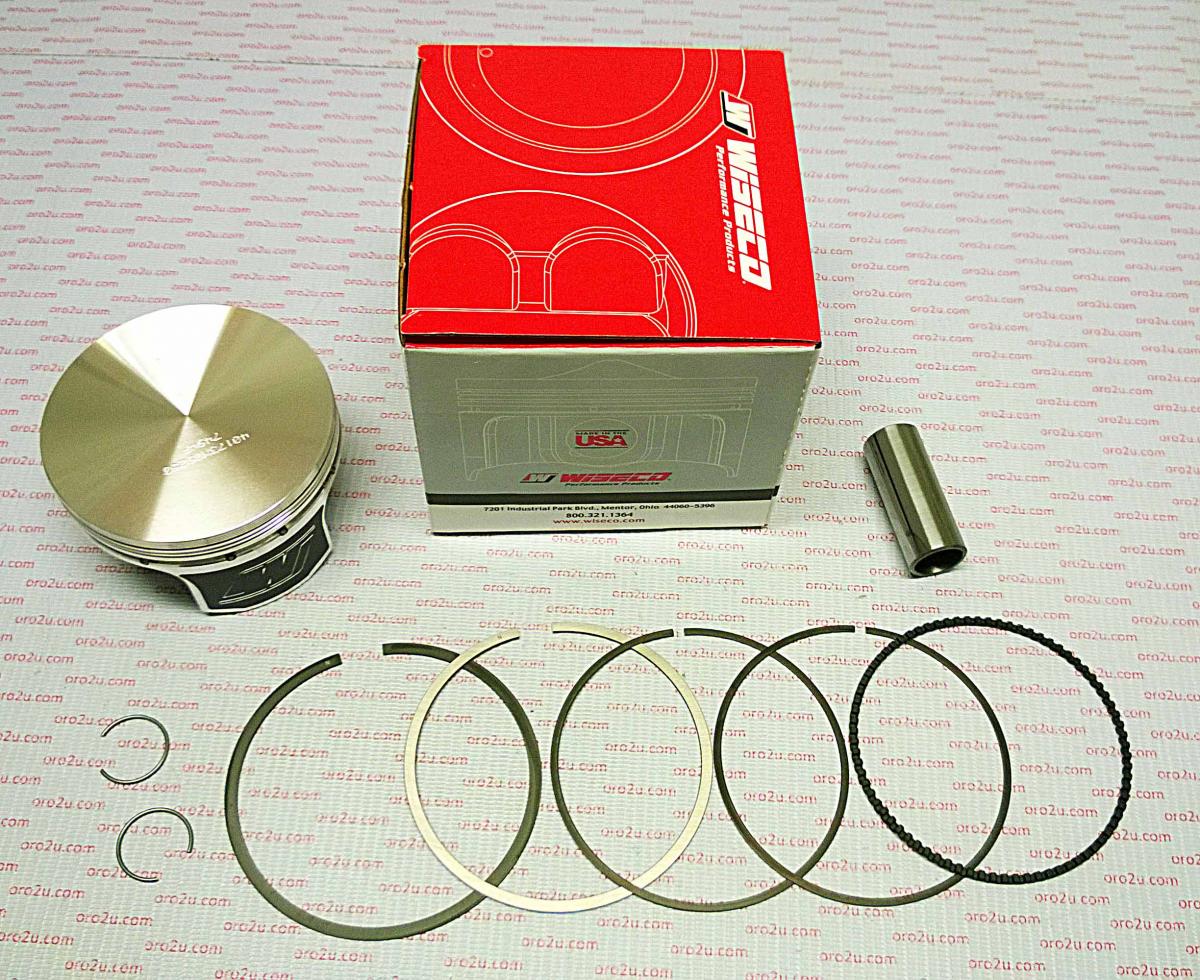

Manufacturer photograph for this reference. Packaging presentation may change.
