Wiseco Forged Piston Kit 76.00 mm 13.5:1 CR for Suzuki GSXR1000 2001–2004 4819M07600

Wiseco 4819M07600 is a piston kit for a 76.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4819M07600
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 76.00 MM
• Piston Diameter: 75.95 MM
• Piston Oversize: 3.00 MM
• Piston Material: 2618
• Skirt Coating: No
• Compression Ratio Actual: 13.5:1

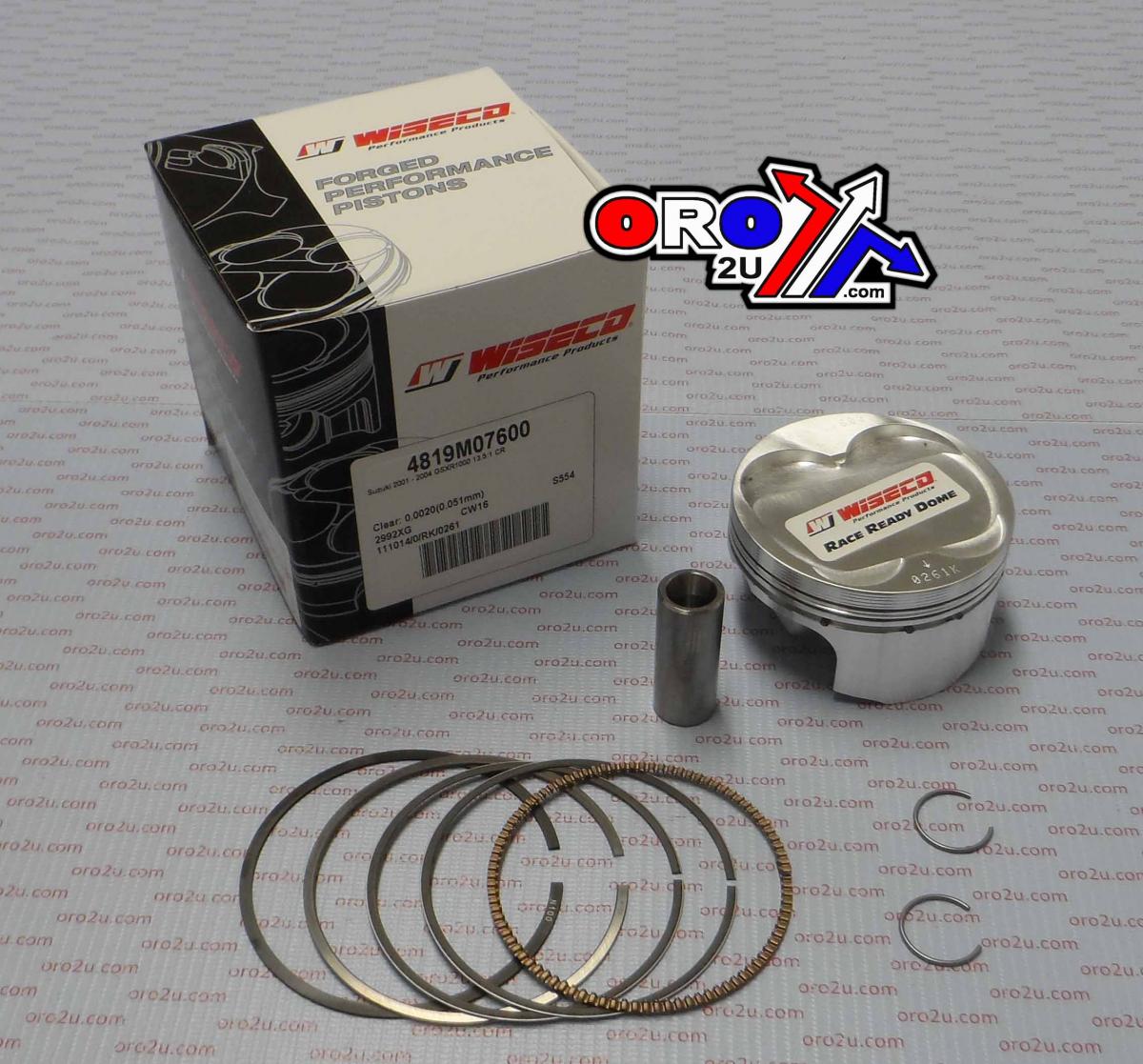

Included components

Ring Set #2992XG, Piston pin #S554, Circlip #CW16.

Cylinder preparation

Wiseco specifies: Bore / Replate.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
