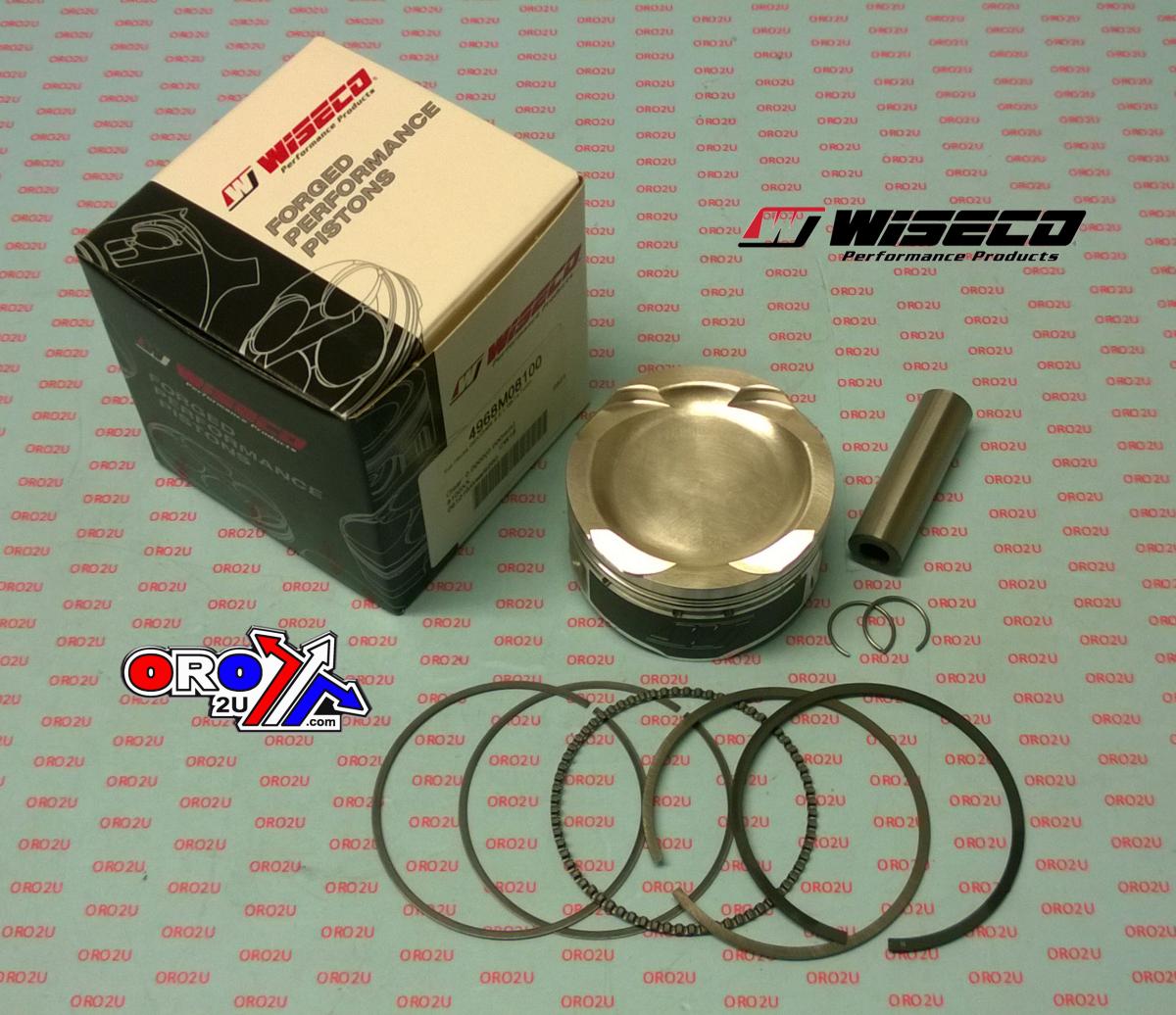

Wiseco Forged Piston Kit 81.00 mm 9.5:1 CR for Suzuki GSX1300 R Hayabusa Gen2 2008–2021 4968M08100

Wiseco 4968M08100 is a piston kit for a 81.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4968M08100
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 81.00 MM
• Piston Diameter: 80.95 MM
• Piston Oversize: STD
• Piston Material: 2618
• Skirt Coating: Yes
• Compression Ratio Actual: 9.5:1

Included components

Ring Set #8100XX, Piston pin #S621, Circlip #CW18.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Application notes

• Suzuki GSX1300 R Hayabusa Gen2 2008–2021: Low Compression for Turbo Applications.
