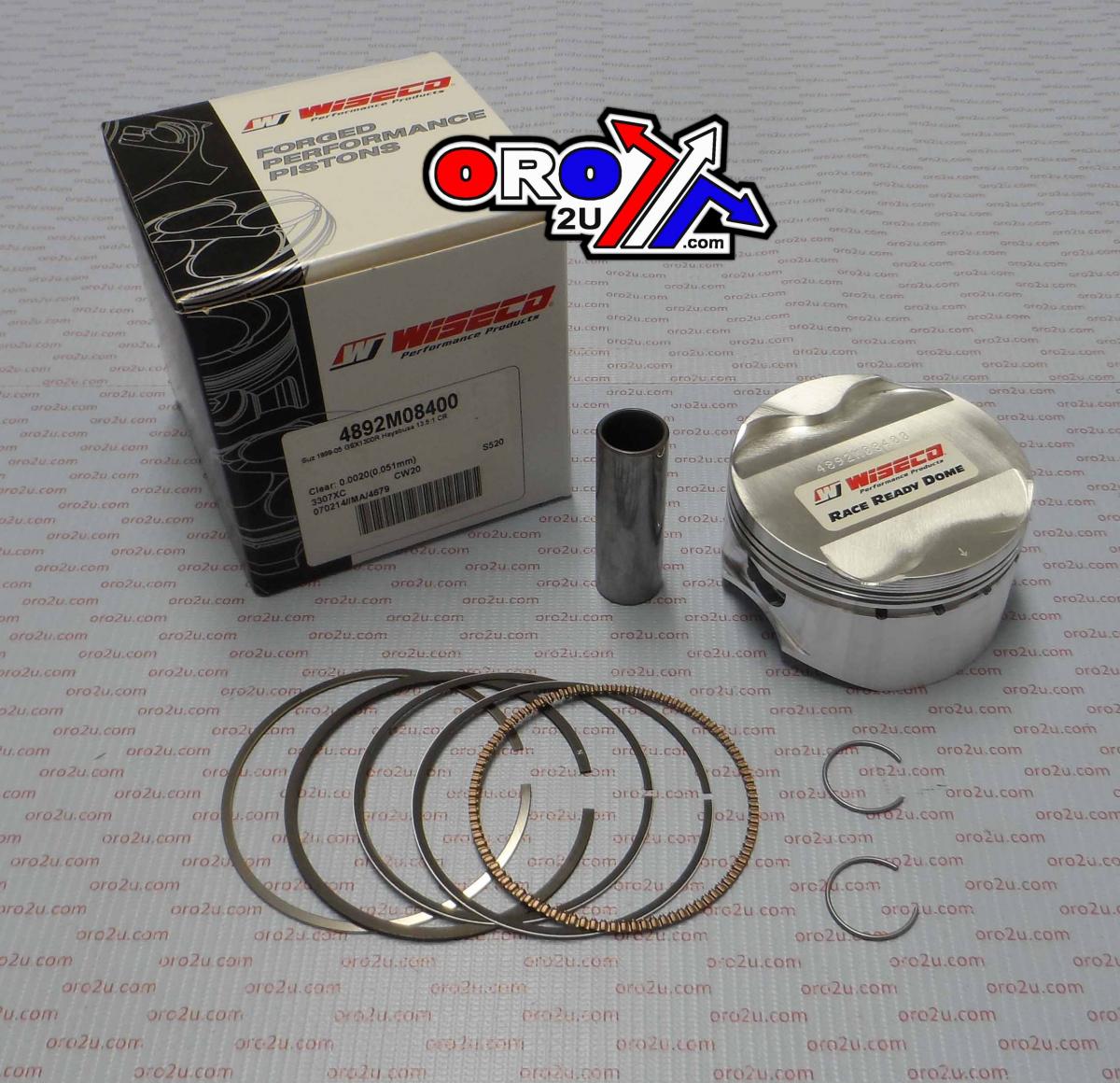

PISTON KIT GSX1300R HC 8400, WISECO 4892M08400 ROAD SUZUKI, 99-07

SUZUKI GSX1300R HAYABUSA 1999 - 2007,

WISECO 4892M08400 13.5:1 Comp. HIGH COMPRESSION PISTON KIT 84.00mm Bore. (SOLD EACH)
Wiseco Pistons included in these assemblies are the same great pistons you can buy from us individually and are forged and machined in the USA to receive a full compliment of power enhancing features. Light weight forgings, millimeter ring packs, extra-strength forgings, gas ports, optimized skirt profiles, skirt coatings, offset pins, and a variety of other features are available depending on your application. Our sport compact pistons come with the Nitride Steel top and Napier 2nd XX ring packs for the ultimate in sealing and durability.

- Displacement: 1396cc Bore
- Standard: 81.00mm Bore
- Actual: 84.00mm Bore
- Oversize: 3.00mm
- Stroke: 63.00mm
- Compression Ratio Actual: 13.5:1
- Dome Type: Flat Top
- Note: Cylinder boring required Note: Cylinder replating required

Part No. 56-W9790.8400HC (oro2u.com)

Cross reference numbers ONLY.
PISTON 12111-24F11-0F0,
RING SET PISTON 12140-24F10,
PIN PISTON 12151-24F10,
CIRCLIP 09381-20004,
