Wiseco Forged Piston Kit 81.00 mm 13:1 CR for Suzuki GSX1300 R Hayabusa Gen1 1999–2007 4690M08100

Wiseco 4690M08100 is a piston kit for a 81.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4690M08100
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 81.00 MM
• Piston Diameter: 80.95 MM
• Piston Oversize: STD
• Piston Material: 2618
• Skirt Coating: No
• Compression Ratio Actual: 13:1

Included components

Ring Set #3189XG, Piston pin #S520, Circlip #CW20.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

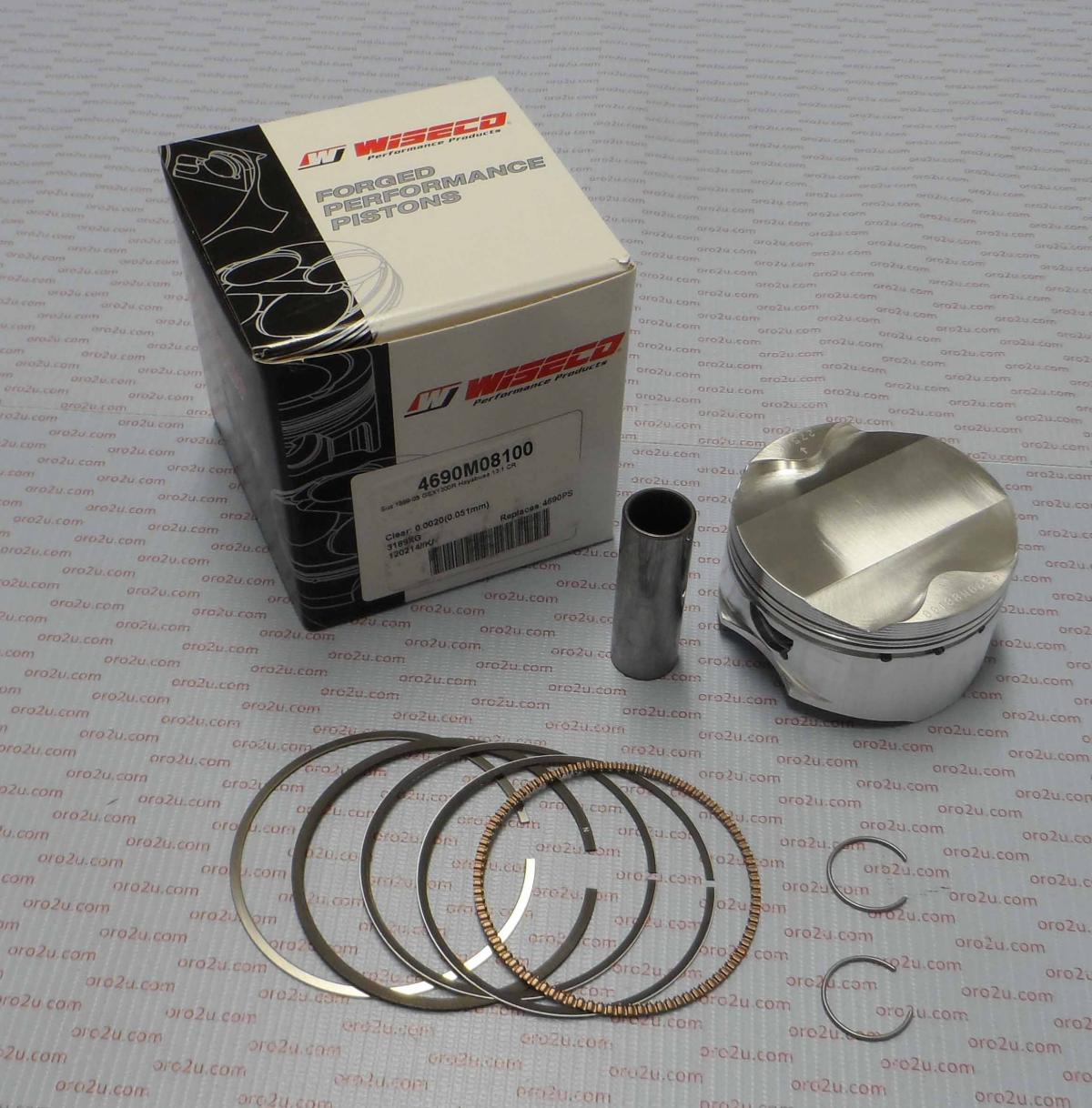

Manufacturer photograph for this reference. Packaging presentation may change.
